Fm antenna, Jack type, Am antenna – Sony DHC-MD500 User Manual
Page 11: Important, Connecting outdoor antennas
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

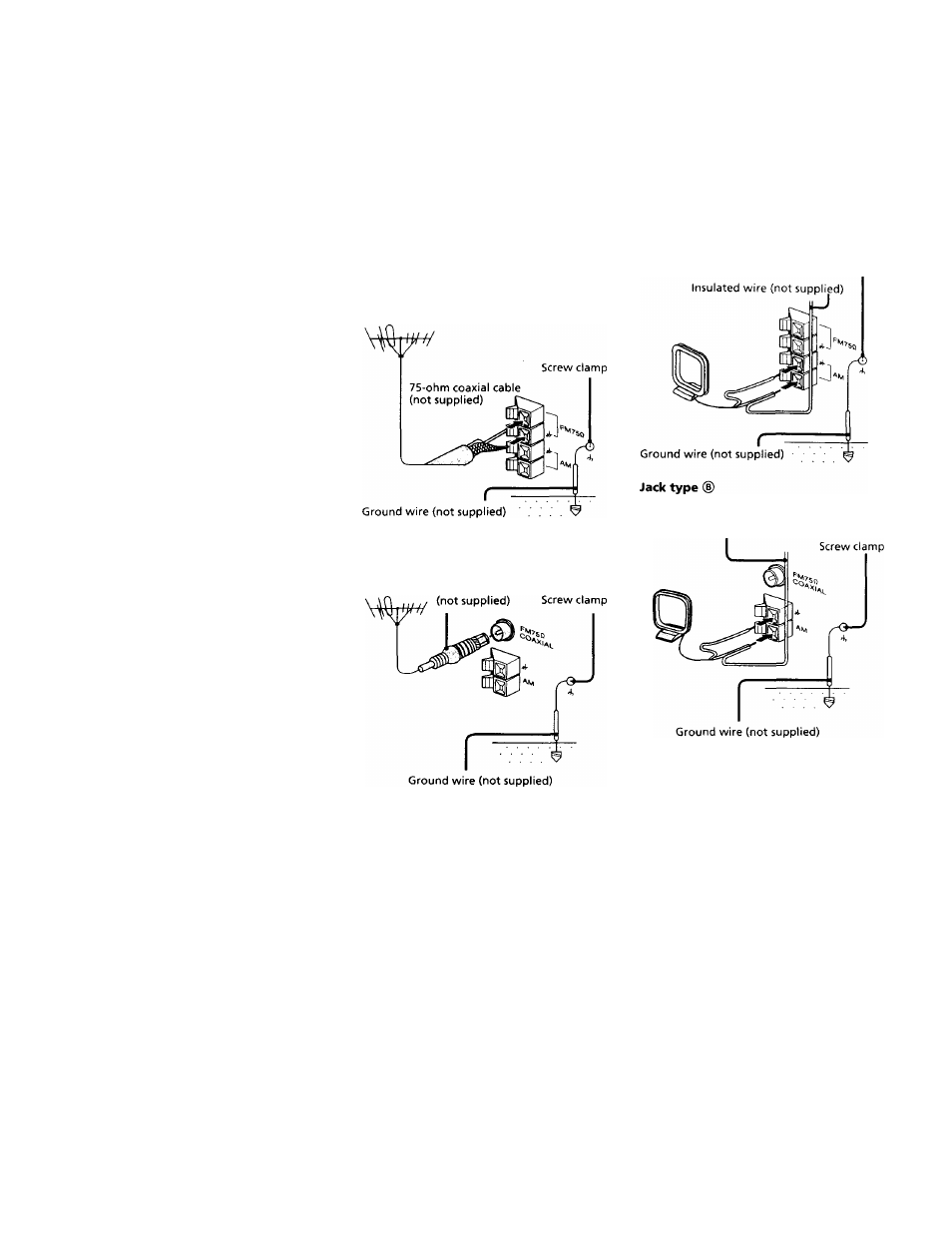

Connecting outdoor
antennas
.■»Connect the outdoor antenna to improve the
reception.
FM antenna
Connect the optional FM outdoor antenna.
You can also use the TV antenna instead.
Jack type ®
Jack type ®
lEC standard socket
connector
AM antenna
Connect a 6- to 15- meter (20- to 50- feet)
insulated wire to the AM antenna terminal
Leave the supplied AM loop antenna
connected.
Jack type ®
Screw clamp
Insulated wire
(not supplied)
Important
If you connect an outdoor antenna, ground
from rh terminal with the screw clamp. To
prevent a gas explosion, do not connect the
ground wire to a gas pipe.
