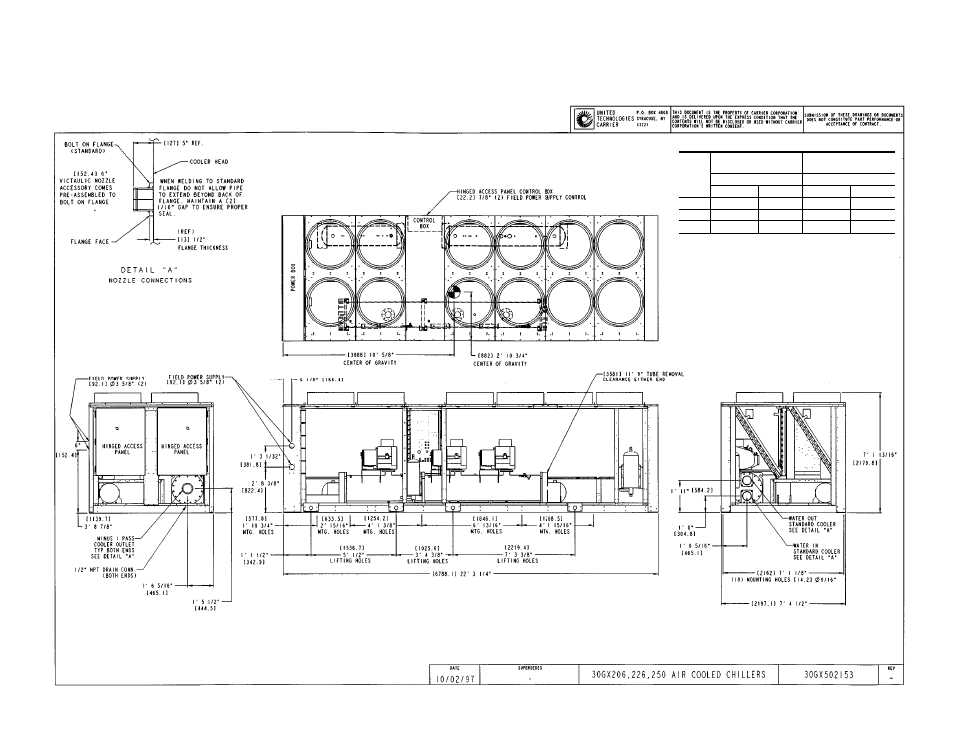

CERTIFIED DIMENSION PRINT
UNIT
30GX
TOTAL OPERATING
WEIGHT
TOTAL OPERATING
WEIGHT
Aluminum Fin Copper Fin
lb kg lb kg
206 12,794 5,815 14,462 6,574
226 12,974 5,897 14,642 6,655
250 13,194 5,997 14,862 6,755
NOTES:
1. Unit must have clearances for air flow as follows:
Top — Do not restrict in any way
Ends — (1524 mm) 5 ft (from solid surface)
Sides — (1829 mm) 6 ft
2. Unit with sound hoods requires clearances for air flow
as follows:
Top
— Do not restrict in any way
Ends — (1829 mm) 6 ft
Sides — (2134 mm) 7 ft
3. Center of gravity shown is for aluminum fin coil. See in-
stallation instructions for all other values.
