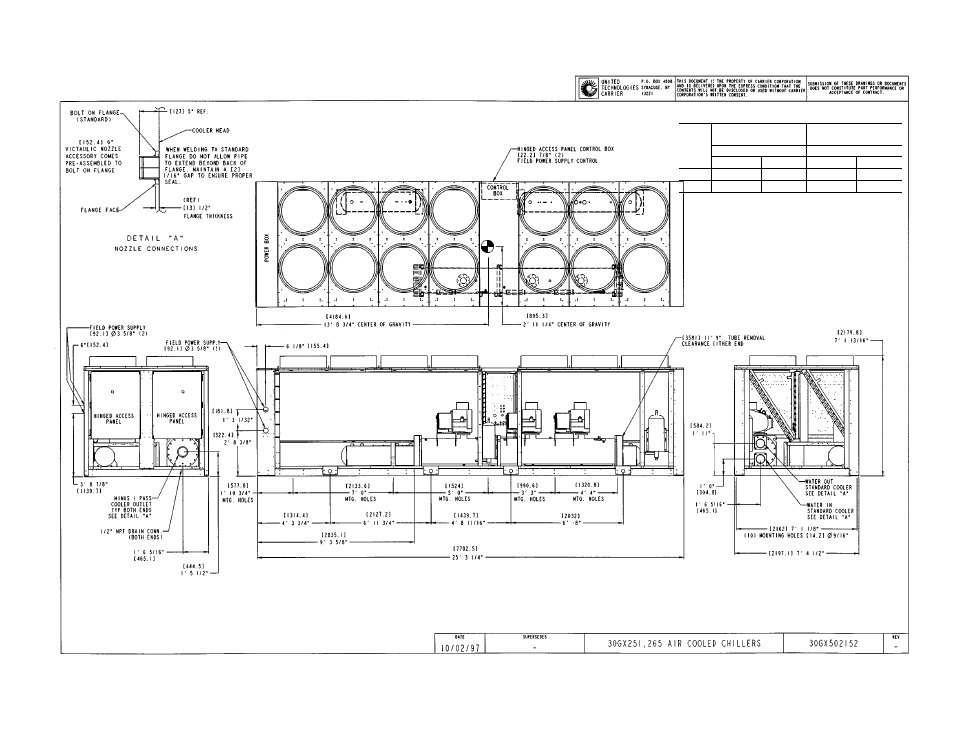

CERTIFIED DIMENSION PRINT
UNIT
30GX
TOTAL OPERATING
WEIGHT
TOTAL OPERATING
WEIGHT
Aluminum Fin Copper Fin
lb kg lb kg
251 13,774 6,621 15,549 7,068
265 13,829 6.286 15,604 7,093
NOTES:
1. Unit must have clearances for air flow as follows:
Top — Do not restrict in any way
Ends — (1524 mm) 5 ft (from solid surface)
Sides — (1829 mm) 6 ft
2. Unit with sound hoods requires clearances for air flow
as follows:
Top
— Do not restrict in any way
Ends — (1829 mm) 6 ft
Sides — (2134 mm) 7 ft
3. Center of gravity shown is for aluminum fin coil. See
installation instructions for all other values.
