Two Brothers Racing Yamaha YFZ450 - Manual (Page 4)

ITBR001-243 2009-10 Yamaha YFZ450 - 4
Fi
gu
re
D
Fi
gu
re
E
Fi
gu
re
F
Juice Box Pro
harness
stock
connector
Juice Box Pro
connectors
unplug TPS

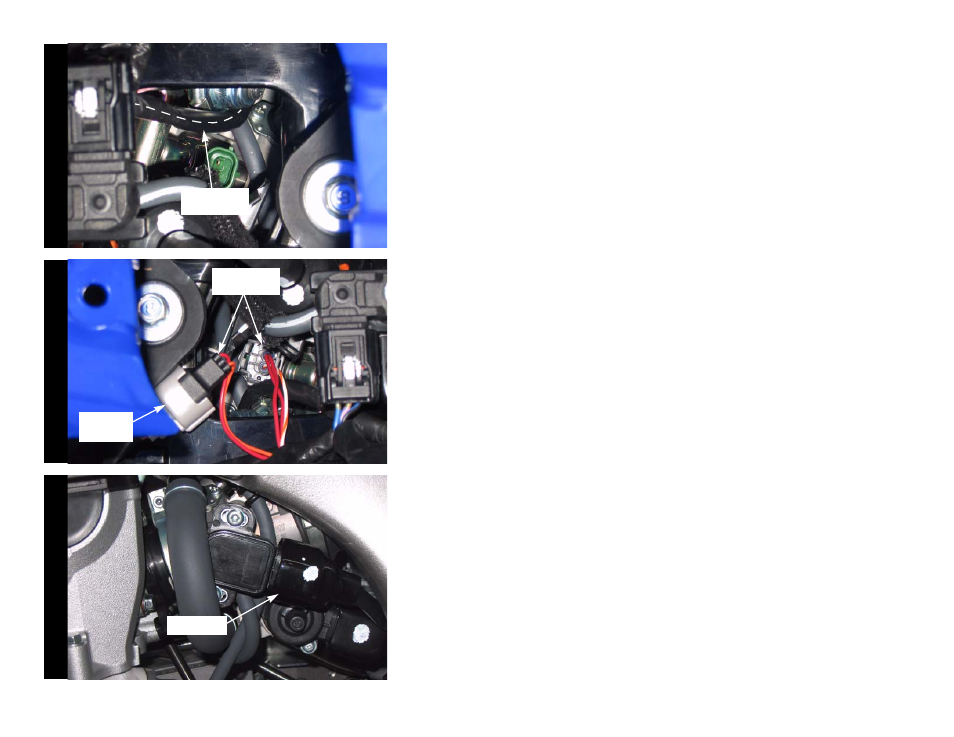

8 Route the 3-pin connectors from the Juice Box Pro harness down the left side of the
throttle body as shown in Figure D.
9 Attach the Juice Box Pro wiring harness to the fuel injector and the stock wiring
harness as shown in Figure E.
10 Unplug the throttle position sensor (TPS) connector from the left hand side of the
throttle body as shown in Figure F.
This connector is covered with a black rubber boot.
