Figure D
Figure E

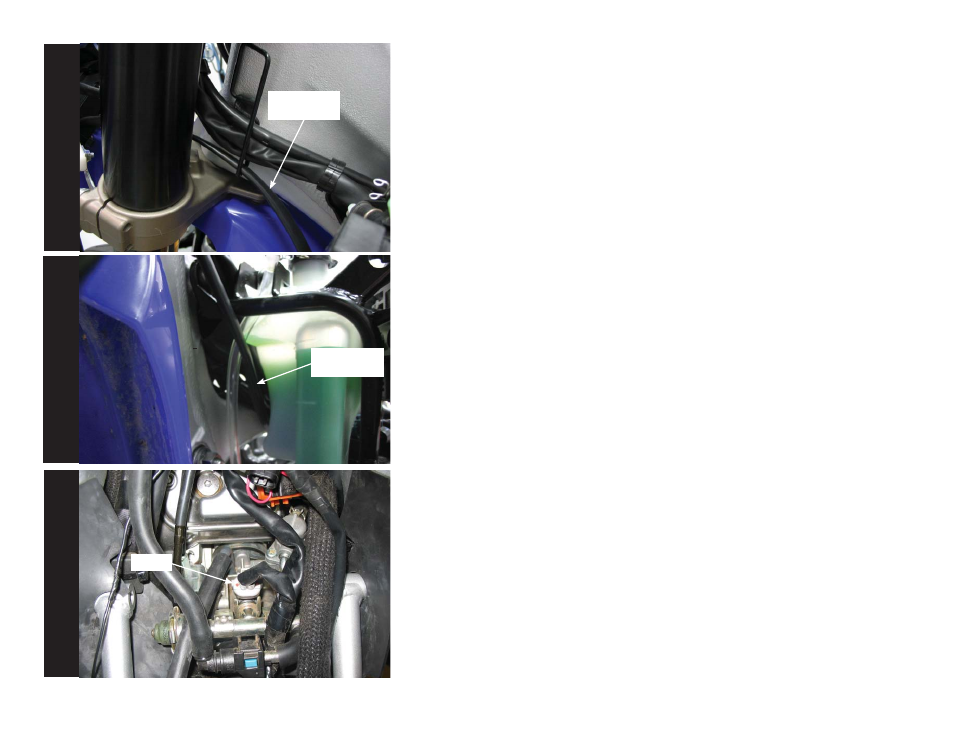

7. Route the Juice Box Pro harness through the cable guide on the left hand side of
the frame as shown in Figure D.
8. Route the Juice Box Pro harness between the frame and coolant reserve bottle as
shown in Figure E.
9. Continue to route the harness above the engine and go towards the throttle body.
unplug
10. Unplug the stock wiring harness from the injector as shown in Figure F.
Figure F
Juice Box Pro
harness
Juice Box Pro
harness
