A
Figure B
Figure C

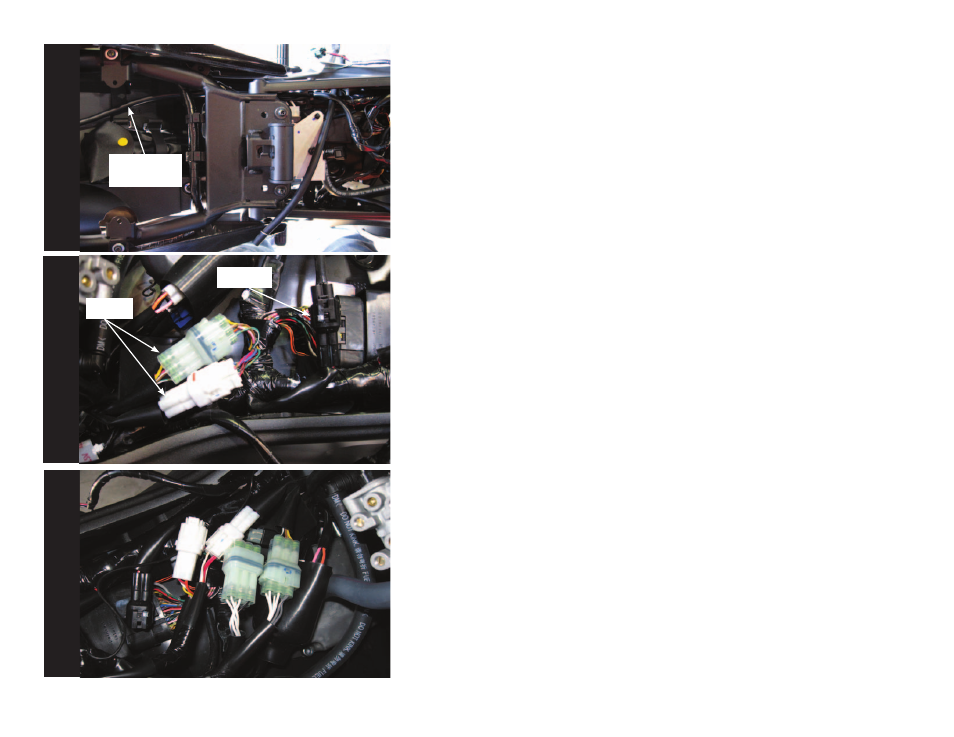

4. Unplug the wiring harness from the throttle bodies as shown in Figure B.
One connector is a white 4-pin connector an the other is a clear 6-pin connector.
5. Unplug the stock O2 sensor and attach the connectors from the Juice Box Pro to
the stock connector and harness.
Note: Skip step 5 for the 2004-2006 models as they do not have an O2 sensor.
6. Attach the connectors from the Juice Box Pro to the stock wiring harness as
shown in Figure C.
Juice Box Pro
harness
unplug
O2 sensor
1. Remove the main seat and the passenger seat.
2. Prop the front of the fuel tank up.
Figure A shows the fuel tank removed which is not necessary.
3. Lay the Juice Box Pro in the tail section and route the harness down the left side
of the bike as shown in Figure A.
