ITBR001-150 2006-08 Yamaha FZ1 - 3
F
igur
e
A
Fig
u
re B
Fi
g
u
re C

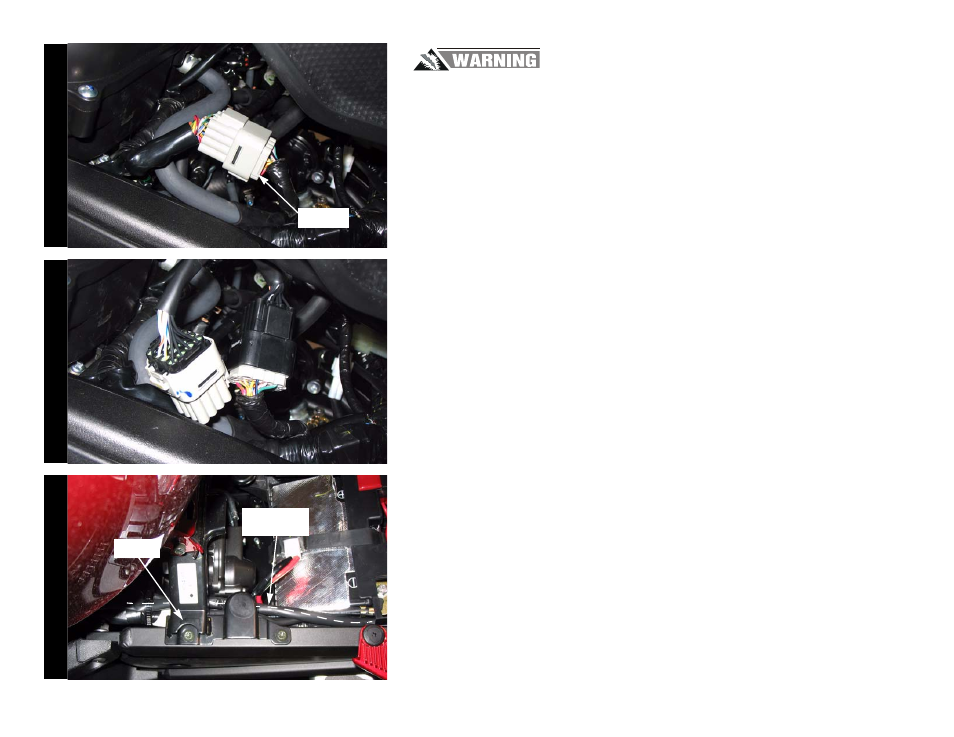

unplug
Juice Box Pro
harness
bracket
The ignition must be turned OFF before installation.
1 Remove the main seat and the passenger seat.
2 Prop the front of the fuel tank up.
3 Temporarily lay the Juice Box Pro in the tail section.
4 Route the Juice Box Pro harness under the tail section and go towards the front of
the bike.
5 Locate the grey connector from the main wiring harness to the injector rail and
unplug this connector as shown in Figure A.
6 Attach the connectors from the Juice Box Pro to the stock wiring harness as shown
in Figure B.
7 Remove the bolt on the left hand side of the fuel tank bracket.
8 Loosen the bolt on the right hand side of the fuel tank bracket enough to route the
Juice Box Pro harness underneath it as shown in Figure C.
9 Re-tighten the bracket.
