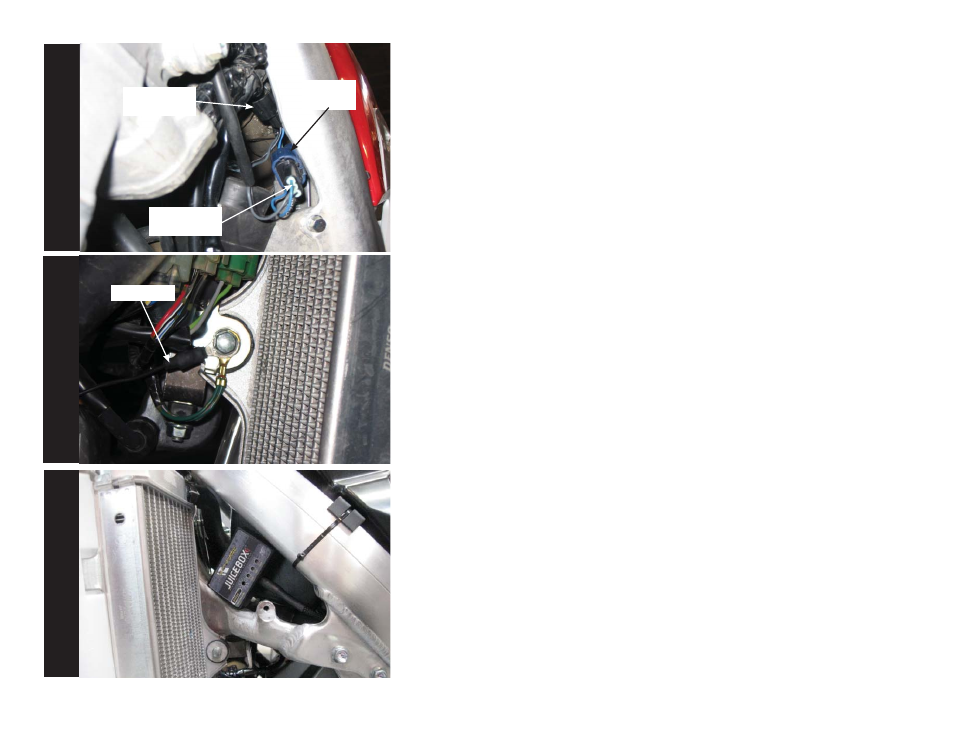

Figure D
Figure E
8. Attach the connectors from the Juice Box Pro to the stock TPS connector and the
stock wiring harness as shown in Figure D.
9. Attach the ground wire from the Juice Box Pro to the stock ground location as
shown in Figure E.
This is the mounting tab for the right side radiator. ground wire
10. Lay the Juice Box Pro on the left, inside of the frame, near the radiator.
11. Reinstall the fuel tank.
Verify the Juice Box Pro harness does not get pinched.
12. Using the supplied velcro, secure the Juice Box Pro to the fuel tank as shown in
Figure F.
Make sure to clean both surfaces with the alcohol swab before attaching.
Install the rubber plugs into the ports of the Juice Box Pro.
13. Reinstall the left hand side radiator cover.
14. Reinstall the seat.
Figure F
Juice Box Pro
connector
stock
connector
Juice Box Pro
connector
