PLEASE NOTE THAT THE CHARGING CRADLES
ARE NOT DESIGNED TO GET WET
Charging System – G2 and G2 EXP Transmitters
Everything said about the receiver charger in the section
“Charging System” also applies to the transmitter charger.
Cradle Light Function
When the transmitter is charging at full current, the cradle
light will be red. When the system switches to trickle charge,
the cradle light will be green. The transmitter is now fully charged
but may be left on charge. If the cradle light is off, power
is interrupted or there is no transmitter on the charger.

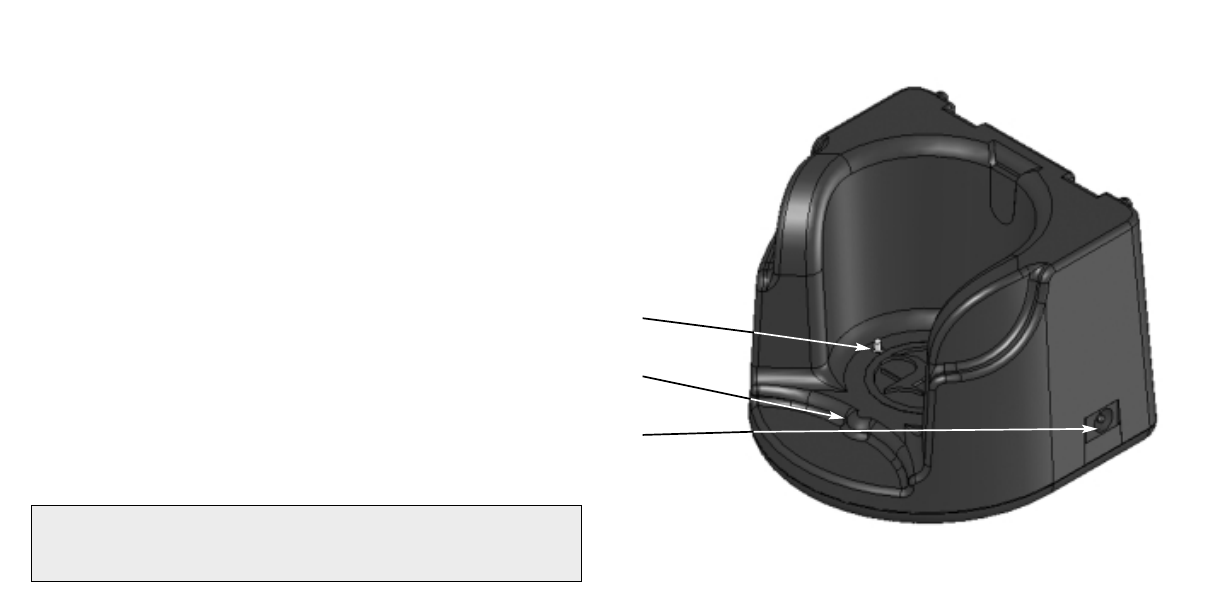

Cradle Charging Contacts
Cradle Light
Jack for AC Power Supply
Use only the correct Tri-Tronics wall cube
(supplied with this unit) for this charging cradle.
