CAUTION:
When withdrawing
gas from the cylinder,
the capacity of the
internal vaporizer can
be exceeded. If gas is
withdrawn at rates
greater than the
vaporizer capacity,
liquid or very cold gas
will be discharged.
Severe damage to
external equipment
could result from the
extreme cold.
RELIEF VALVES AND RECOMMENDED REGULATOR SETTINGS
Relief Pressure Normal
Valve Building Economizer Operating
Setting Setting Setting Range
22 psig N/A N/A 0-22 psig
1.5 bar N/A N/A 0-1.5 bar
152 kPa N/A N/A 0-152 kPa
230 psig 125 psig 145 psig 125-230 psig
16 bar 8.6 bar 10 bar 8.6-16 bar
1586 kPa 862 kPa 1000 kPa 862-1586 kPa
350 psig 300 psig 320 psig 300-350 psig
24 bar 20.7 bar 22 bar 20.7-24 kPa
2413 kPa 2069 kPa 2206 kPa 2069-2413 kPa
Part numbers for alternate valves and regulators are shown in the Spare Parts section of
this manual.

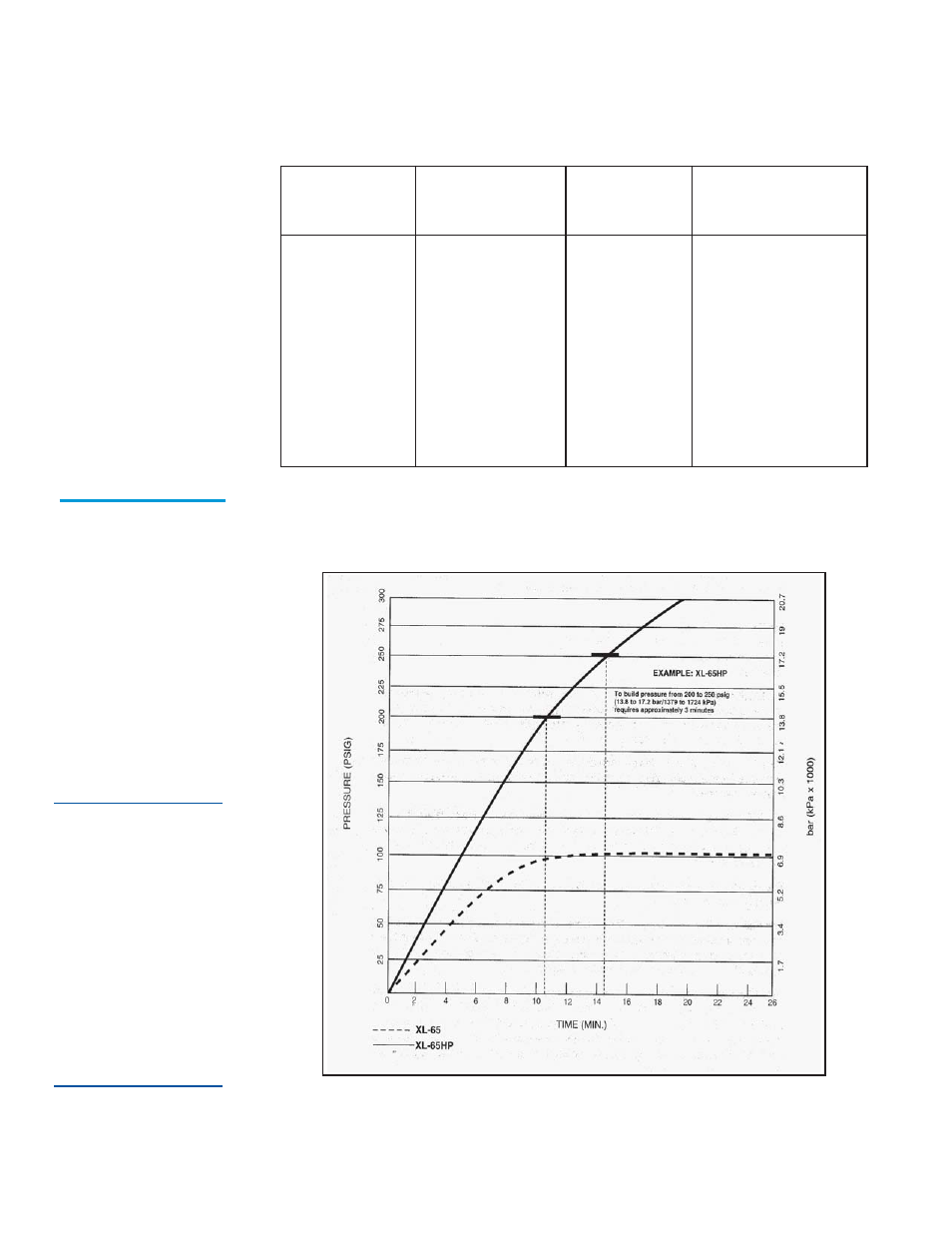

Pressure
Building Rates
Graph
