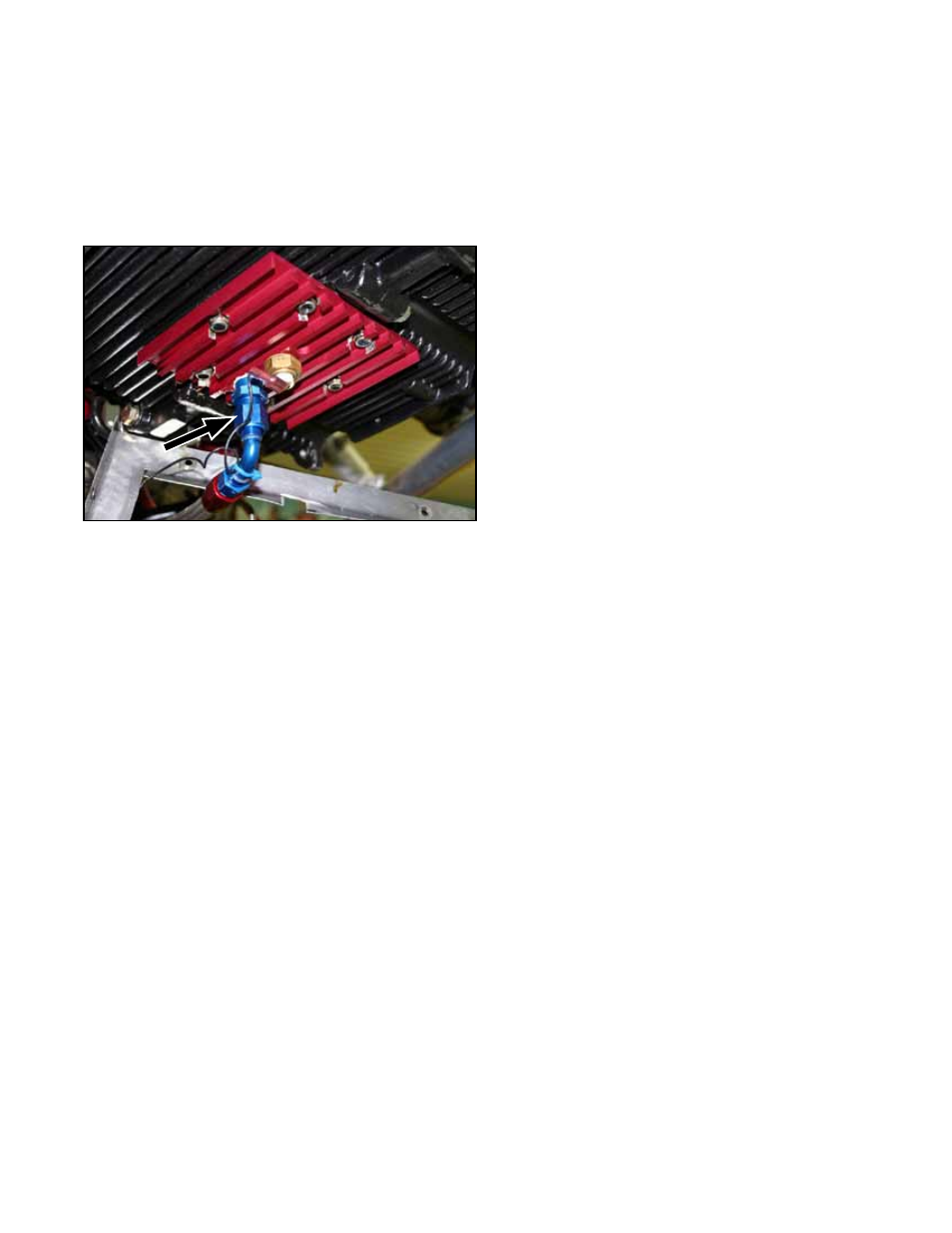

This photo shows a typical oil return line installation in a
oil sump sump plate. An AN816-6D nipple is installed in the
sump plate and a -06 hose with -06AN 90
O
Swivel hose end is
attached to the nipple.
To fit an oil return line to an AeroVee equipped with the
optional ACV-P02-20 Oil Sump Plate, which has a 1/4 NPT
tapped port for fitting an oil return line, install an AN816-6D
nipple in the Oil Sump Plate and attach a -06 braided hose
equipped with one -06AN (straight) hose end and one -06AN
Hose End Fittings, (90
O
Swivel end) fitting between the nipple
in the sump plate and the oil separator.
