3-7
Cisco 3200 Series Router Hardware Upgrade Guide
OL-15983-01
Chapter 3 Replacing Cards in the Cisco ISR 3270 Rugged Enclosure
Card Replacement Process
Replacing or Adding a New Card
To replace or add new cards, follow the steps in the “Replacing or Adding a New Card” section on
page 2-23 .
Inserting the Card Stack into the Enclosure
To insert the card stack into the rugged enclosure, follow these steps:
Step 1 Make sure that the LED cable is connected to the back of the Fast Ethernet Switch Mobile Interface Card
(FESMIC) and the serial console cable is connected to the back of the SMIC card. See
Figure 3-6 .

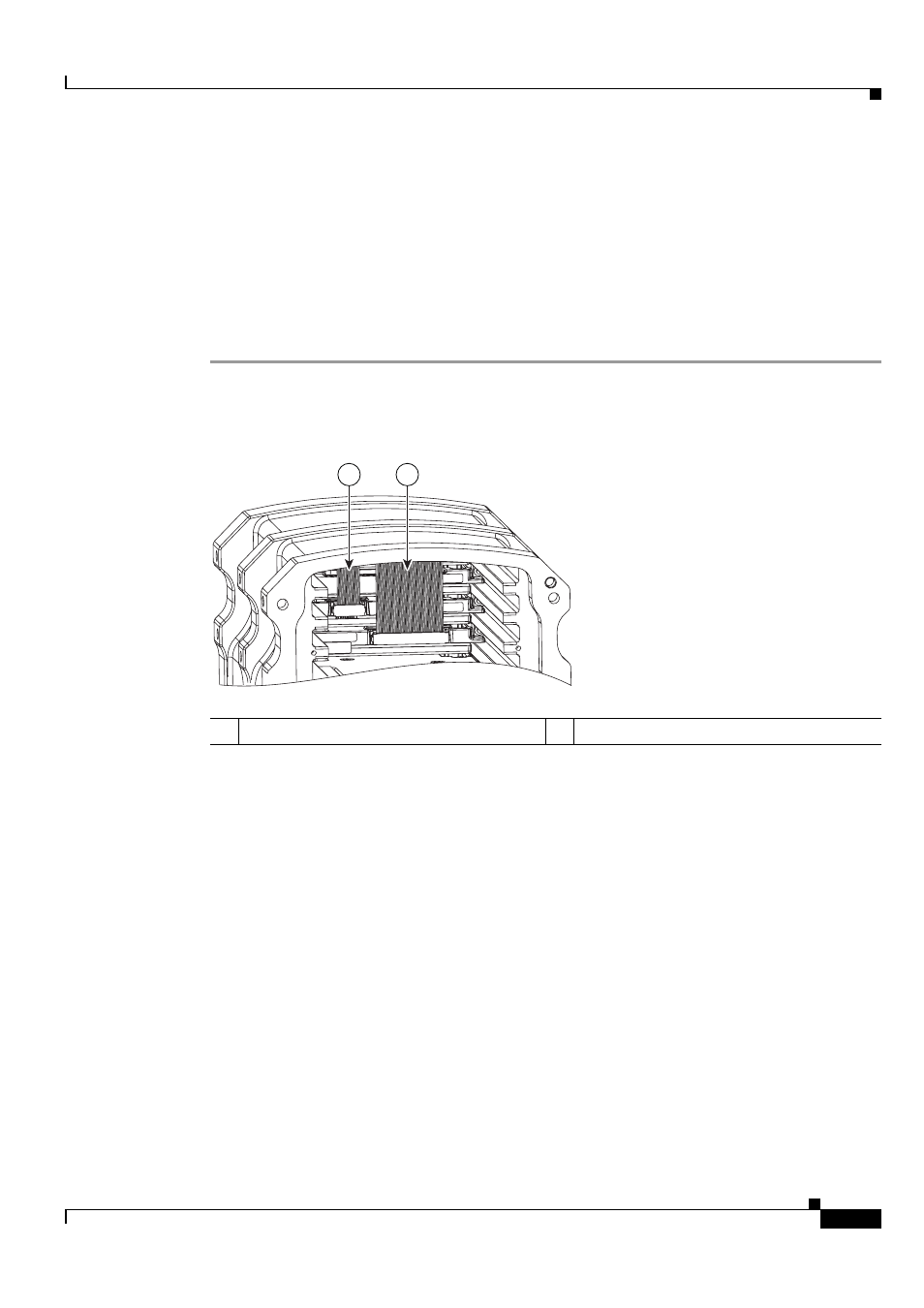

Figure 3-6 LED and Serial Console Cables
Step 2 Route the serial connector and (FESMIC) LED ribbon cables over the top of the stack.
Step 3 Align each cards’ Wedge Loks so that the angles on the Wedge Loks match the angle of the Wedge Lok
rail.
Figure 2-9 shows proper Wedge Lok alignment.
Step 4 Place the extrusion vertically on a sturdy, flat surface with the antenna end cap side facing up.
270470
1 2
1 LED cable 2 Serial console cable
