1-8
Cisco 3200 Series Router Hardware Upgrade Guide
OL-15983-01
Chapter 1 Introduction
Wiring Cards
Wiring Cards

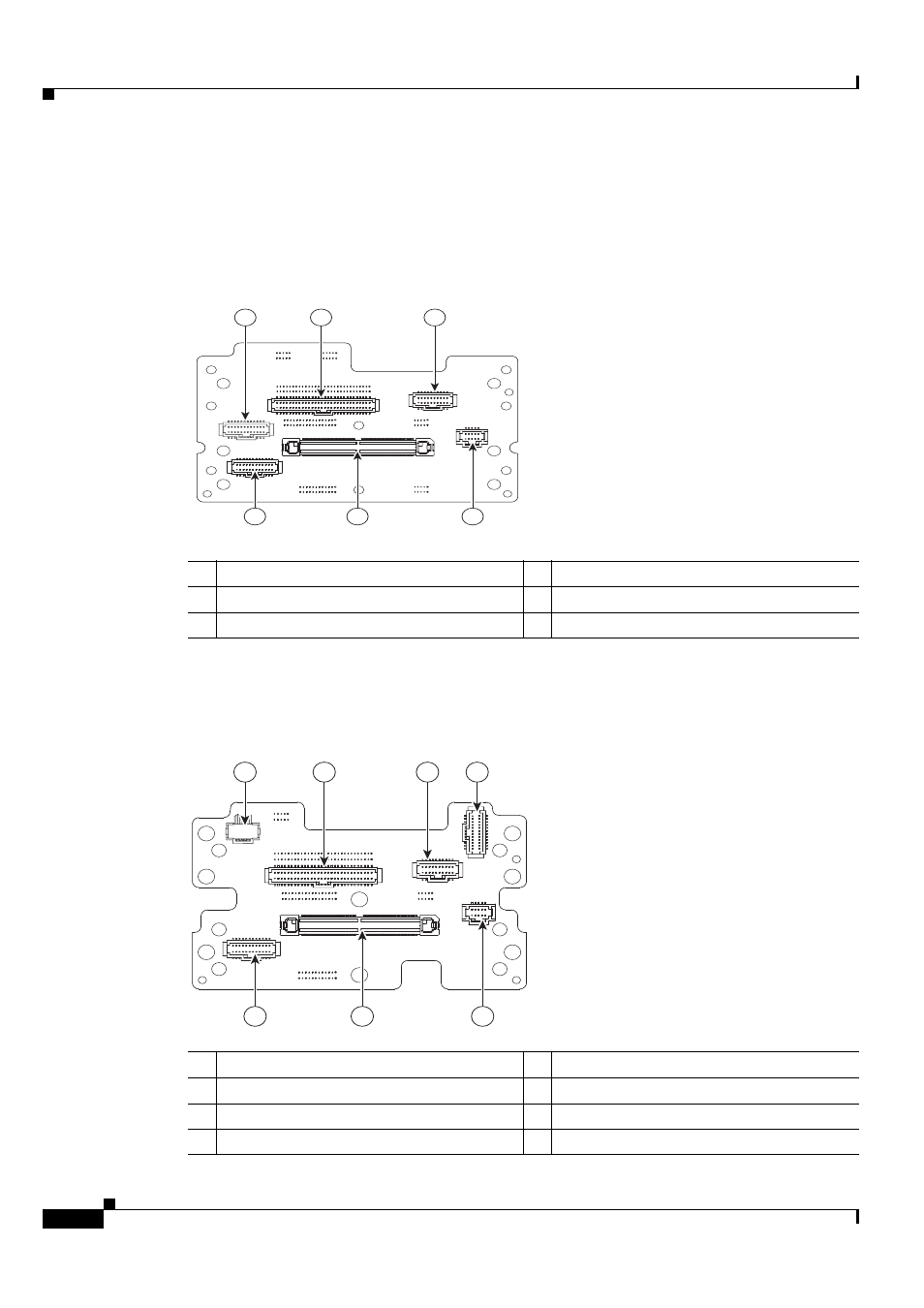

The Cisco 3230 Rugged Enclosure supports versions 1 and 2 of the wiring card. Figure 1-7 shows
version 1 of the wiring card.
Figure 1-7 Version 1 of the Wiring Card
Version 2 of the wiring card (see Figure 1-8 ) improves on version 1 by routing the MARC FE port to the
end cap in exchange for one of the FESMIC ports.
Figure 1-8 Version 2 of the Wiring Card
270451
1 2 3
4 5 6
1 Port J3 (WMIC 2 console) 2 Port J13 (serial console)
3 Port J5 (LED) 4 Port J4
5 I/O end cap connector 6 Port J2 (WMIC 2 console)
270452
1 2 3 4
5 6 7
1 Port J14 (FE) 2 Port J13 (serial console)
3 Port J5 (LED) 4 Port J3 (WMIC 2 console)
5 Port J4 (FE extender) 6 I/O end cap connector
7 Port J2 (WMIC 2 console)
