Pro-Tools 105B - Manual (Page 8)

105-SB BENDER
-DIE INSTALL
813-986-9000
PAGE 8
PRO-TOOLS

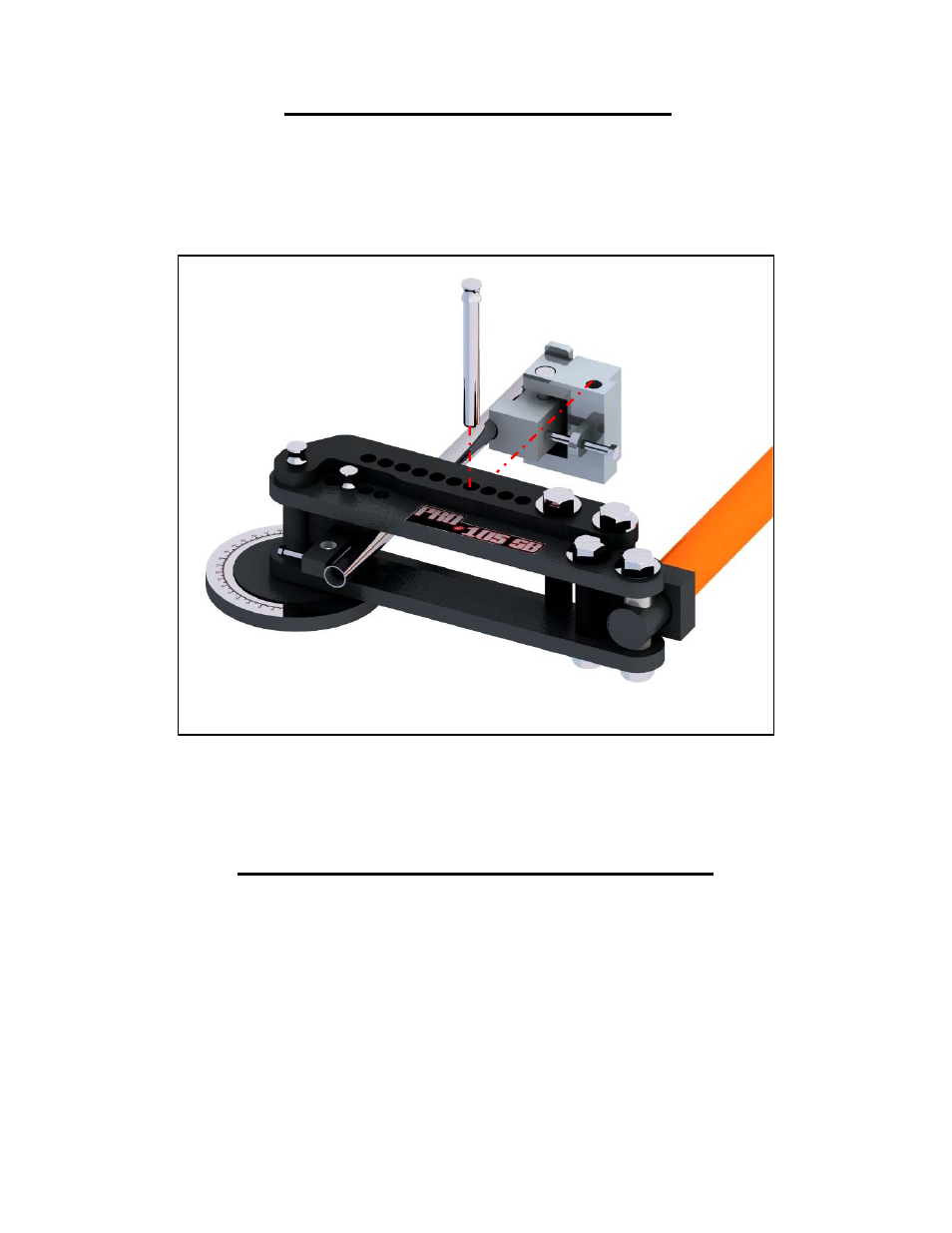

TUBE & BACKING BLOCK INSTALL
BENDER SWINGARMS MUST BE CLOSED AGAINST BENDER FRAME BEFORE
INSTALLING TUBE AND & QUICK RELEASE WITH BACKING BLOCK.
INSERT TUBE INTO RADIUS OF MAIN DIE.
PUSH BACKING BLOCK AS TIGHTLY AS POSSIBLE AGAINST TUBE, THEN
INSERT PIN THOUGH BENDER FRAME & QUICK RELEASE.
