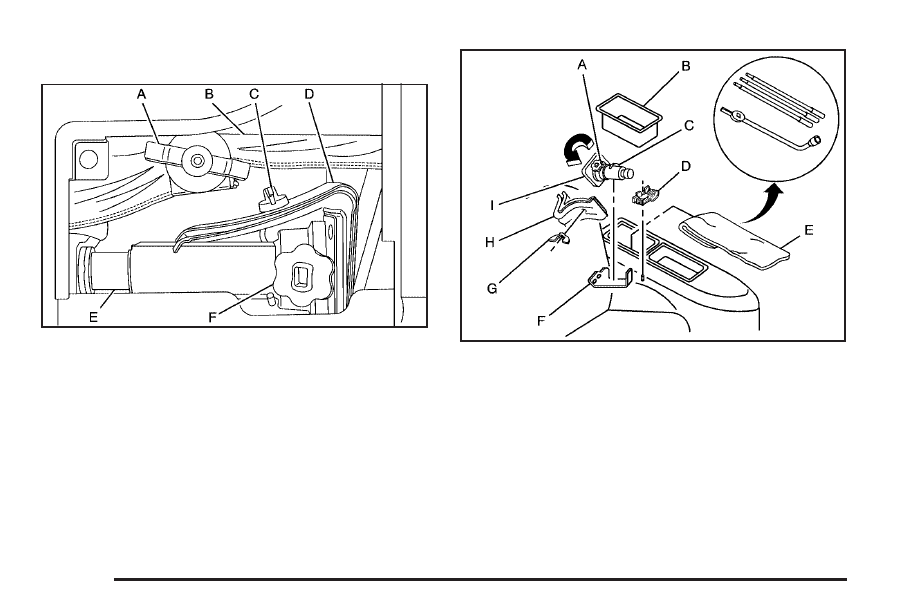

Removing the Spare Tire and Tools
A. Retaining Bracket
and Wing Nut
B. Tool Kit and
Jack Tools
C. Wing Nut Retaining
Wheel Blocks
D. Wheel Blocks
E. Jack
F. Knob
A. Knob
B. Removable
Storage Tray
C. Retaining Hook
D. Retaining Bracket
and Wing Nut
E. Tool Kit and
Jack Tools
F. Mounting Bracket
G. Wing Nut Retaining
Wheel Blocks
H. Wheel Blocks
I. Jack
Regular Models - Rear Access Panel
Extended Models
5-80
