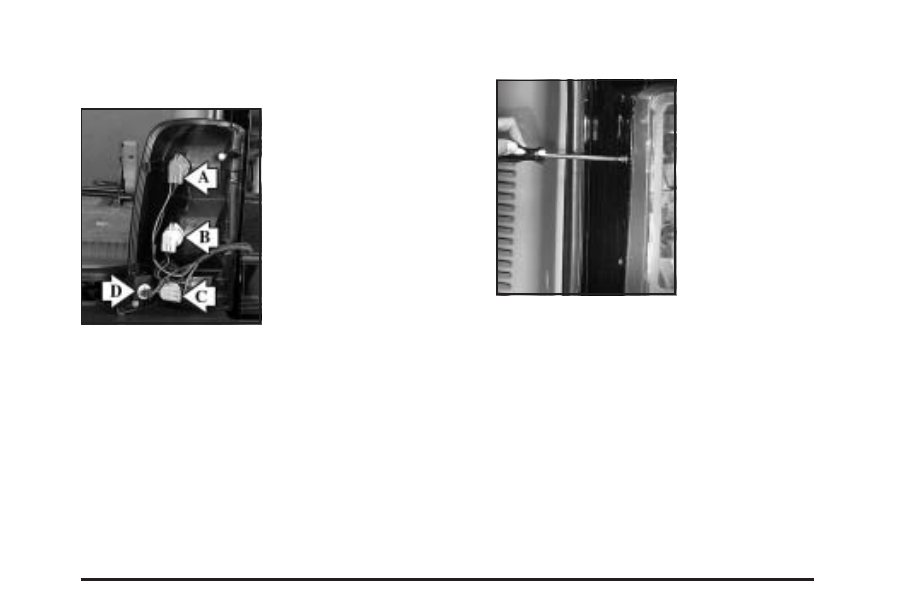

Taillamps, Turn Signal, Sidemarker,
Stoplamps and Back-up Lamps

A. Turn Signal/Taillamp

B. Stoplamp/Taillamp

C. Back-up Lamp

D. Sidemarker Lamp

To replace one of these bulbs, do the following:

1. Remove the

two screws from the
taillamp assembly.

2. Remove the taillamp assembly.
3. Press the release tab and turn the bulb socket

counterclockwise to remove it from the taillamp
assembly. The sidemarker lamp does not have a
release tab.

4. Pull the bulb straight out from the socket.
5. Install a new bulb into the socket and insert it into

the taillamp assembly

6. Turn the bulb socket clockwise until it clicks. The

sidemarker lamp does not have a release tab and
therefore will not click when it is installed.

7. Reinstall the taillamp assembly and tighten the

screws.
