7
8
S T A N D A R D J - B O X M O U N T
[Recessed]
The J-Box is recessed/cast into ceiling.
Envoy is attached using the quick mount
release bracket system.
S T A N D A R D J - B O X M O U N T
[Surface]
The J-Box is surface mounted to ceiling
where J-Box and conduit are visible. Envoy
is attached using the quick mount release
bracket system.
P E N D A N T B O X / B I R D G U A R D [PBG]
The pendant box accessory also acts as a
bird guard and may be used with a free
swinging or rigid pendant system,
allowing the fixture to level and hang
straight. Envoy is attached using the same
quick mount release bracket similar to
J-Box installation.
T R U N N I O N - M O U N T [TM]
The trunnion mount bracket allows direct
attachment to ceiling using anchors and
provides a 1/2" threaded connection box
for wiring connections outside the fixture.
Trunnion mount is adjustable from 8 3/8"
to 13 1/4" depth off mounting surface to
top of fixture. Water-tight power cord
option is available.
D I R E C T S U R F A C E M O U N T W I T H
C O N D U I T
Cast in “knock outs” are provided on the
back surface of the cast housing to allow
mounting directly to concrete surface
using anchors. Power is routed through
Conduit Taps [CT] option, that are located
90° offset from latches.
W A L L M O U N T [WM]
The wall mount arm allows you to match
path or perimeter lighting within or
outside the garage. Envoy is attached
using the same quick mount release
bracket similar to J-Box installation.
Power is routed in wall and through
access hole within arm to fixture.

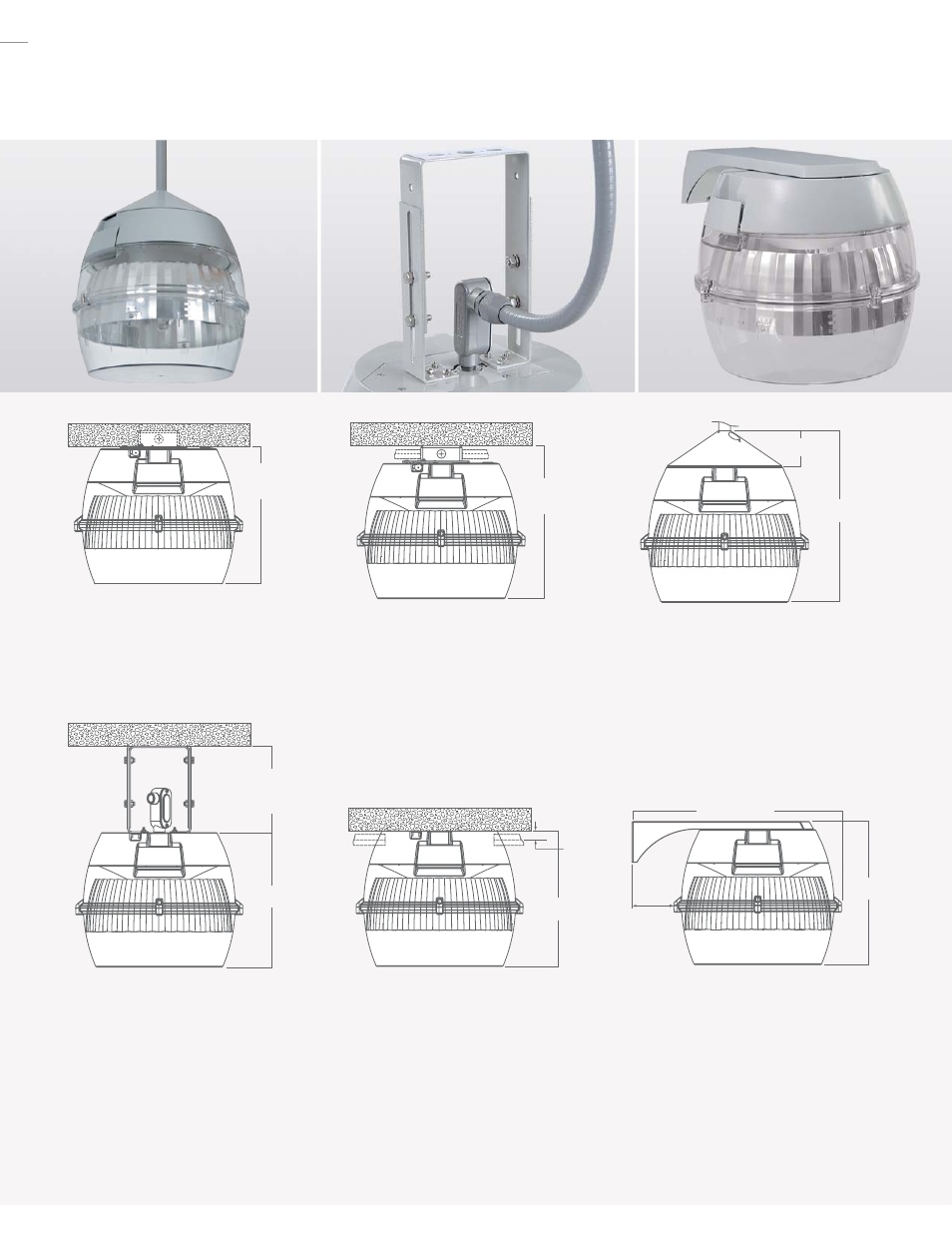

MOUNTING CONFIGURATIONS
14 7/8"
[378mm]
Approx.
3 7/16" [88mm]
16 5/8"
[423mm]
13 1/2"
[343mm]
Approx.
8 3/8"
[213mm]
Adustable to
13 1/4"
13 1/8"
[334mm] 13 1/8"
[334mm]
7/8"
[22mm]
20 7/16" [519mm]
13 15/16"
[354mm]
4 1/16"
[104mm]
T H R O U G H B R A N C H W I R I N G
Rated for use with 4IN/4OUT #12GA wires. Through branch wiring requires Conduit Tap [CT] option and provides [2] 3/4" NPSM threaded hubs for wire
access into side of fixture.
