Cooper Lighting Envoy User Manual
Page 13
L I G H T C O N T R O L

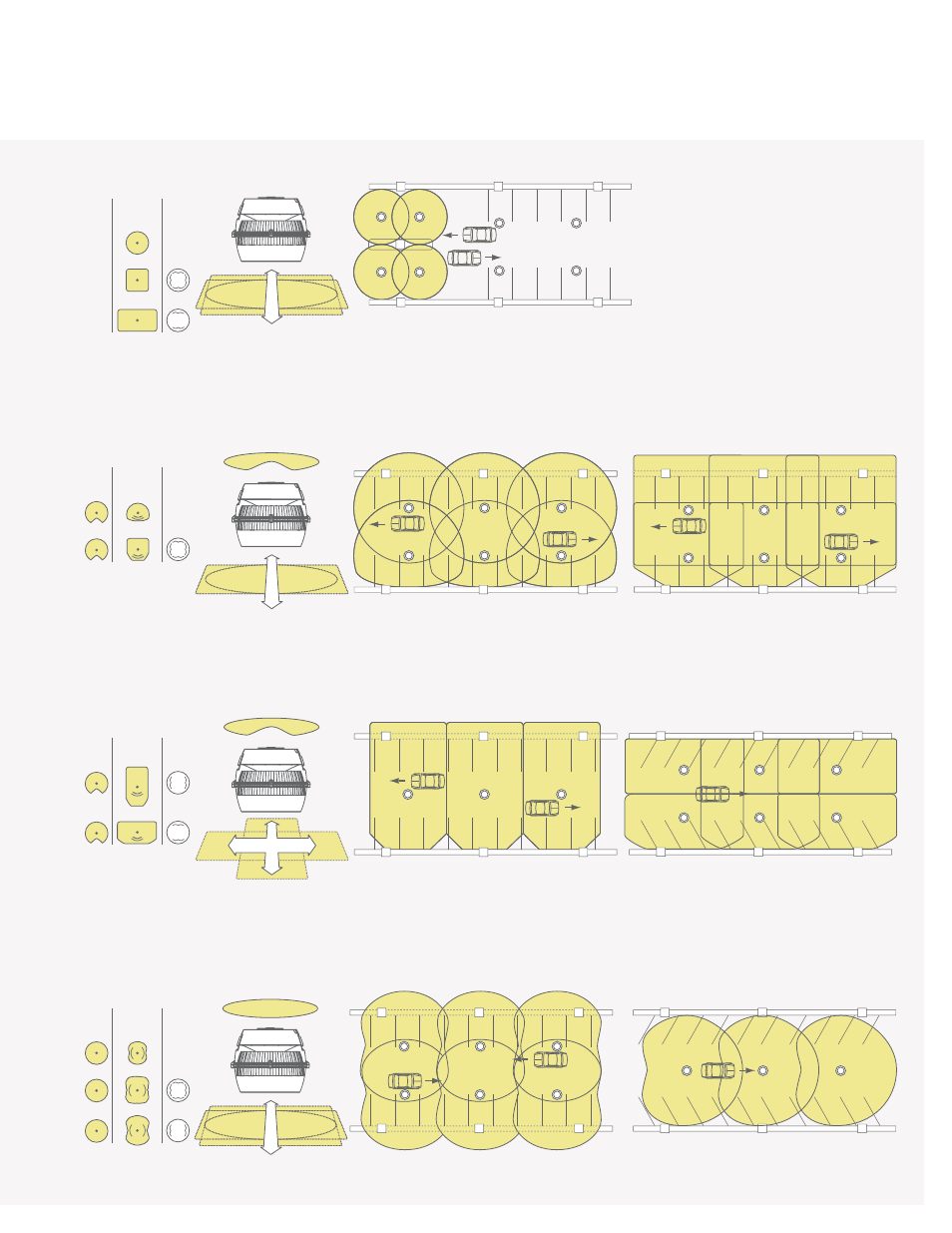

Envoy’s numerous reflector options and light controlling shields allow flexibility in application for all garage types. All of the three [3] main
distributions are available with the complete line of shield options and accessories.
Driving Direction
Two-way Drive Lane
Double Luminaire Row
Two-way Drive Lane
Double Luminaire Row
HOUSE-SIDE SHIELD [HS]
ROUND [RD]
SQUARE [SQ]
Driving Direction
Reflector
Inserts
Down
Light
Up
Light
Two-way Drive Lane
Single Luminaire Row
HOUSE-SIDE SHIELD [HS]
RECTANGULAR [TG]
RECTANGULAR [TG]
Driving Direction
One-way Drive Lane
Double Luminaire Row
Reflector
Inserts
Down
Light
Up
Light
Reflector
Inserts
CONCENTRATED DOWNLIGHT [CD]
Gargage Entrance or
High Ceiling Area
Down
Light
Up
Light
none
none
none
none
none
none
Two-way Drive Lane
Double Luminaire Row
One-way Drive Lane
Single Luminaire Row
DRIVE LANE SHIELD [DLS]
DRIVE LANE SHIELD [2-WAY]
DRIVE LANE SHIELD [1-WAY]
Reflector
Inserts
Down
Light
Up
Light
Driving Direction
Garage Exterior
Garage Exterior
Garage Exterior
Garage Exterior
