OPTICAL RENDERINGS
Effective lighting designs provide for
excellent uniformity, vehicle identification
and facial recognition. Strong vertical
illumination of cars and pedestrians is
important for detection of vehicles, walking
pedestrians and facial recognition of
possible criminal threats.
In applications where light trespass is a
concern, Envoy’s house-side shield [HS]
accessory controls spill light on the garage
exterior while still maintaining illuminance
criteria within the garage, including strong
vertical illumination for vehicle and facial
recognition.

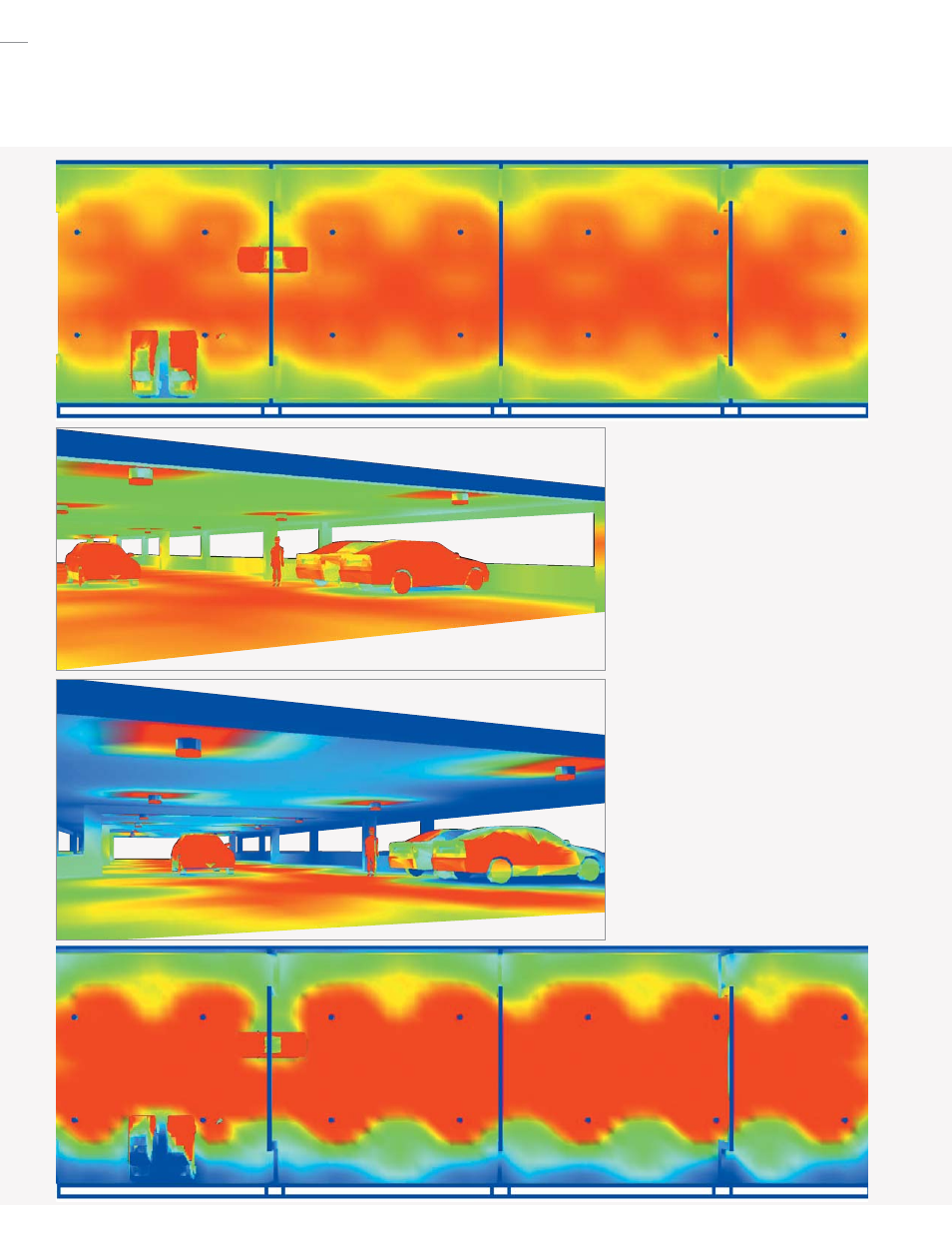

EPL-175-MH-SQ
60' Wide Double Bay, 9' Ceiling
.2, 0, .2 Reflectance
30' Spacing Between Fixtures [East/West]
25' Spacing Between Fixtures [North/South]
EPL-175-MH-SQ-HS180
60' Wide Double Bay, 9' Ceiling
.2, 0, .2 Reflectance
30' Spacing Between Fixtures [East/West]
25' Spacing Between Fixtures [North/South]
GARAGE EXTERIOR
GARAGE EXTERIOR
