DECORA
TIVE
1187 COOPER LIGHTING
• Die-cast aluminum
housing with spun and
stamped aluminum top.
Stainless steel toolless
entry latch for relamping
and ballast power
module access. Top is
completely removable
without the use of tools
• Injection molded acrylic
refractors available in
type II, III or V. Optional
glass or polycarbonate
refractor available
• Mogul base socket for
50W through 150W HPS
and 175W and 250W
Metal Halide; 50W
through 150W MH is
medium-base socket. All
sockets are 4KV pulse
rated
• Power module designed
for easy removal of all
electrical components for
servicing by loosening
two screws.
• Optional internal NEMA
twistlock photocontrol
available
• Post top mount fits 3"
O.D. tenons. Secured by
3/8" stainless steel hex
socket set screws
• Approximate net weight:
34 lbs. (15 kgs.)
MCGRAW-EDISON ®
BKG
BRECKENRIDGE
5 0 - 2 5 0 W
M e t a l H a l i d e
H i g h P r e s s u r e S o d i u m
P O S T- T O P
A R E A L U M I N A I R E

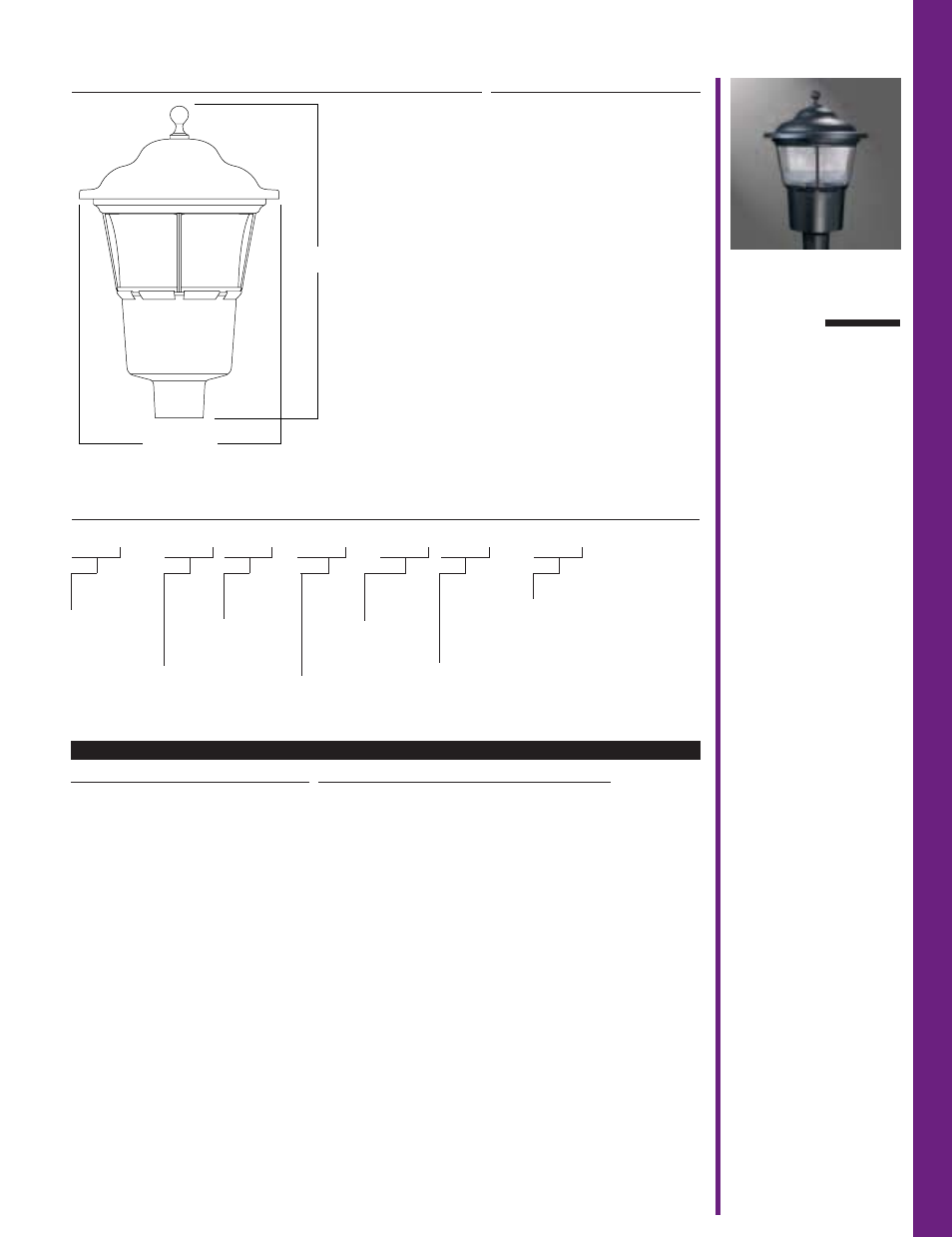

D I M E N S I O N S D E S C R I P T I O N
The BKG Breckenridge displays
an old fashion charm of traditional
area lighting, enhancing every
lighting application with a
distinctive styling day or night.
U.L. listed and CSA certified for
wet locations.
Enhancing natural landscapes as
well as cityscapes, the
Breckenridge brings outstanding
performance and style to
walkways, parking lots and
roadways.
NOTES: 1 50 through 150W Metal Halide are medium-base socket. All others are mogul-base. 2 250W Metal Halide only. 3 Product also available in non-US voltages
and 50Hz for international markets. Consult factory for availability and ordering information. 4 Multi-Tap ballast is 120/208/240/277V wired 277V. 5 Triple-Tap
ballast is 120/277/347V wired 347V. 6 Add as suffix in the order shown. 7 Type III and Type V distributions only. 8 Order separately, replace XX with color suffix.
9 Specifications and dimensions subject to change without notice.
O R D E R I N G I N F O R M A T I O N
S A M P L E N U M B E R : B K G - 1 5 0 - M H - 1 2 0 - 5 - B K
Product
Family
BKG=Breckenridge Lamp
Wattage
1
50=50W
70=70W
100=100W
150=150W
175=175W
250=250W
2
Lamp Type
MH=Metal
Halide
HPS=High
Pressure
Sodium
Voltage 3
120=120V
208=208V
240=240V
277=277V
347=347V
480=480V
MT=Multi-Tap
4
TT=Triple-Tap 5
Distribution
2=Type II
3=Type III
5=Type V Options &
Accessories
(See Below)
Color
AP=Grey
BZ=Bronze
BK=Black
WH=White
GN=Hartford Green
DP=Dark Platinum
GM=Graphite Metallic
Options 6
F=Single Fuse (120, 277 or 347V)
D=Double Fuse (208, 240 or 480V)
T=Terminal Block
G=Glass Refractor
7
P=Polycarbonate Refractor
R=NEMA Twistlock Photocontrol Receptacle
L=Lamp Included
E.P.A. 1.7
25 1/2"
[648mm]
16 1/2" [419mm]
Accessories 8
OA/RA1016=NEMA Twistlock Photocontrol—Multi-Tap
OA/RA1027=NEMA Twistlock Photocontrol—480V
OA1202=House Side Shield
