Leak Test

Leak test must be repeated each time LP tank is exchanged
or refilled.

Do not smoke during leak test.

Do not use an open flame to check for gas leaks.

Grill must be leak checked outdoors in well-ventilated area,
away from ignition sources such as gas fired or active
electrical appliances. During leak test, keep grill away from
open flames or sparks.

Use a clean paint brush and 50/50 soap and water solution.

Use

mild soap and water. s

Do not use household cleaning

agents. Damage to gas train components can result.

1. Turn control knob to OFF.

2. Be sure regulator is tightly connected to LP tank.

3. Completely open LP tank valve by turning hand wheel

counter clockwise. If you hear a rushing sound, turn gas off
immediately. There is a major leak at the connection.

Correct before proceeding.

4. Brush soapy solution onto following connections:

• LP tank valve (

1) including threaded portion into tank;

• Regulator fitting, face at crimps and vent hole (

2).

• Hose (

3) and all connections;

• All LP tank welds (LP tank collar, middle and bottom) (

4).

5. “If growing” bubbles appear, there is a leak. Close LP tank

valve immediately. Re-tighten connections and repeat leak
test procedures. If leaks cannot be stopped replace parts.
Order new parts by giving the serial, model number and
name of items needed to the Grill Service Center at
1-800-241-7548.

6. Always close LP tank valve after performing leak test by

turning hand wheel clockwise

.

WARNING

If “growing” bubbles appear do not use or
move the LP tank. Contact an LP gas supplier
or your fire department!

LP Tank Exchange

Many retailers that sell grills offer you the option of replacing

your empty LP tank through an exchange service. Use only
those reputable exchange companies that inspect, precision
fill, test and certify their cylinders.

Exchange your tank

only for an OPD safety feature-equipped tank as

described in the "LP Tank" section of this manual.

Always keep new and exchanged LP tanks in upright

position during use, transit or storage.

Leak test new and exchanged LP tanks BEFORE

connecting to grill.

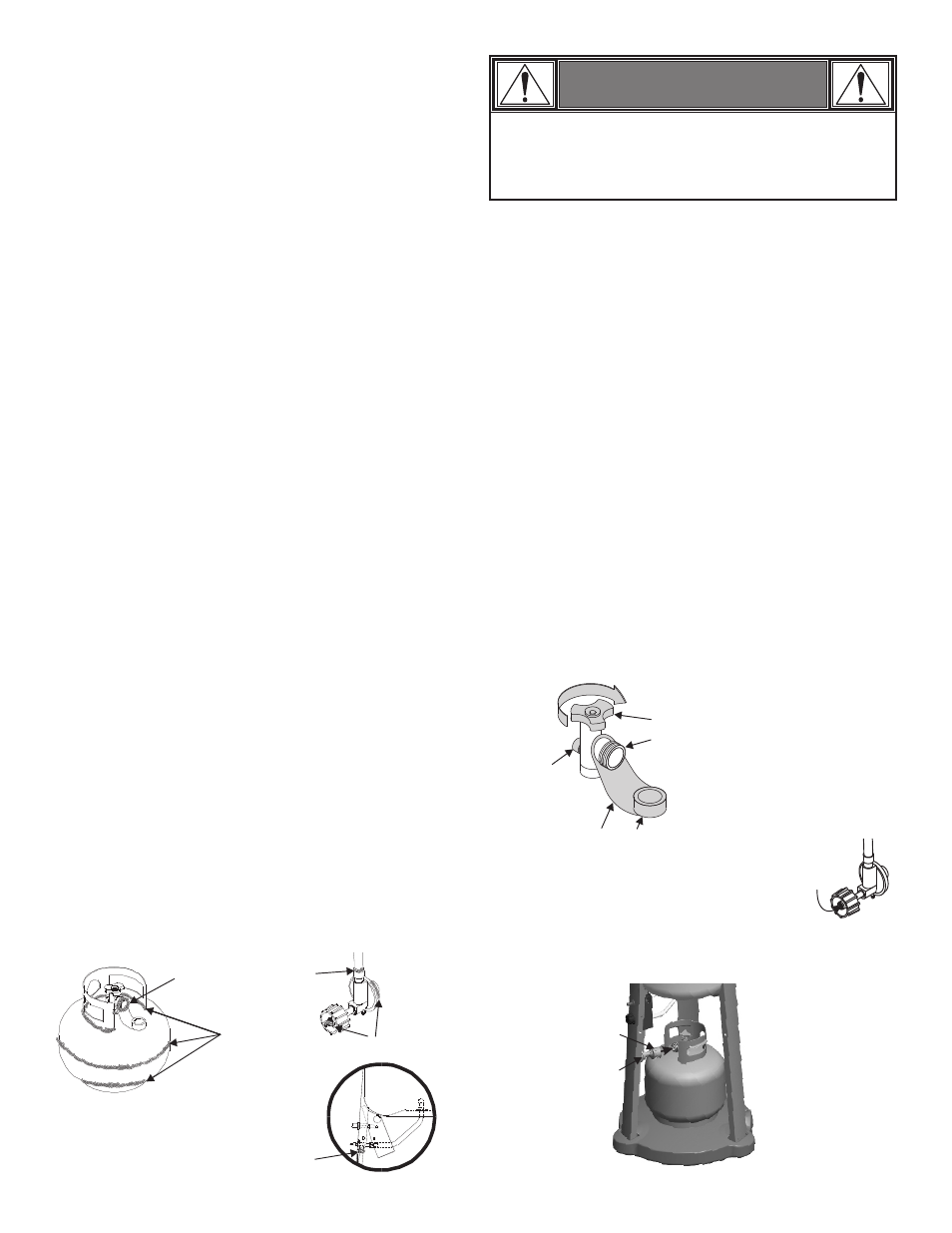

Connecting Regulator to the LP Tank

1. Turn control knob OFF.

2. Turn LP tank OFF by turning hand wheel clockwise to a full

stop (A).

3. Remove the protective cap from LP tank valve. Always use

cap and strap supplied with valve.

4. Hold regulator, insert nipple (B) into LP tank valve. Nipple

must be centered in LP tank valve. Hand tighten coupling

nut, holding regulator in a straight line(C) with LP tank

valve so as not to cross thread the connection.

5. Turn coupling nut clockwise to tighten to a full solid stop. The

regulator will seal on the back-check feature in LP tank valve,
resulting in some resistance.

An additional one-half to

three quarters turn is required to complete connection.

Tighten by hand only - do not use tools.

Note: If you cannot complete the final connection, disconnect

regulator and repeat steps 4 and 5. If you are still unable
to complete the connection,

do not use this valve and

regulator! Call 1-800-241-7548 for a replacement.

6. Follow “Leak Test” instructions on the following page.

ck

w

lo

is

C

e

f

f

O

Safety Relief

Valve

OPD Hand Wheel

Type 1 outlet with

thread on outside

Strap and Cap

Nipple has to be centered

into the LP tank valve.

Hold coupling nut and regulator

as shown for proper connection

to LP tank valve.

Coupling Nut

Regulator

A

B

C

06601295 • 5
