5

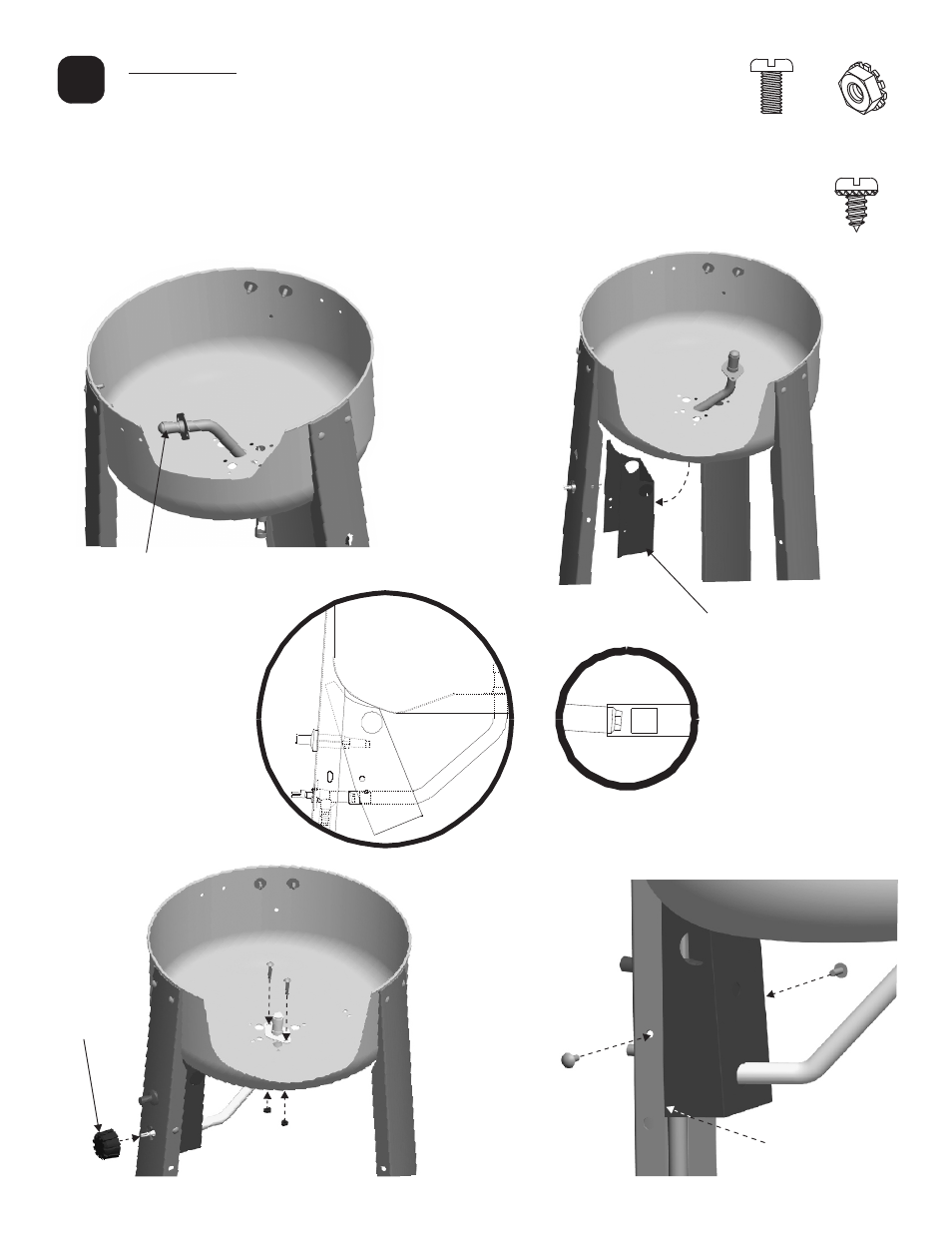

Items to Assemble:
1 Burner
2 #10-24x3/8” Machine Screws
2 Lock Nuts (#10-24)
1 Valve Cover
2 #10x3/8” Self-tap Screw
1 Control Knob
A Insert burner tube into center hole through grill bottom.
B Then insert burner tube through hole in valve cover, making
sure flanges are facing towards control panel leg.
C Engage burner tube over valve attached to control leg.
D Fasten burner to grill bottom with machine screws and hex
nuts.
E Connect control knob to valve.
F Valve cover flanges goes inside control leg, attach with
two self-tap screws.
#10x3/8”
Self-tap Screw
Qty: 2
A
B
Valve cover inside
control leg
#10-24x3/8”
Machine Screws
Qty: 2
#10-24
Lock Nuts
Qty: 2
C
Correct engagement
of valve and burner tube
D
E
F
Control Knob
Valve Cover
Burner
06601295 • 11
