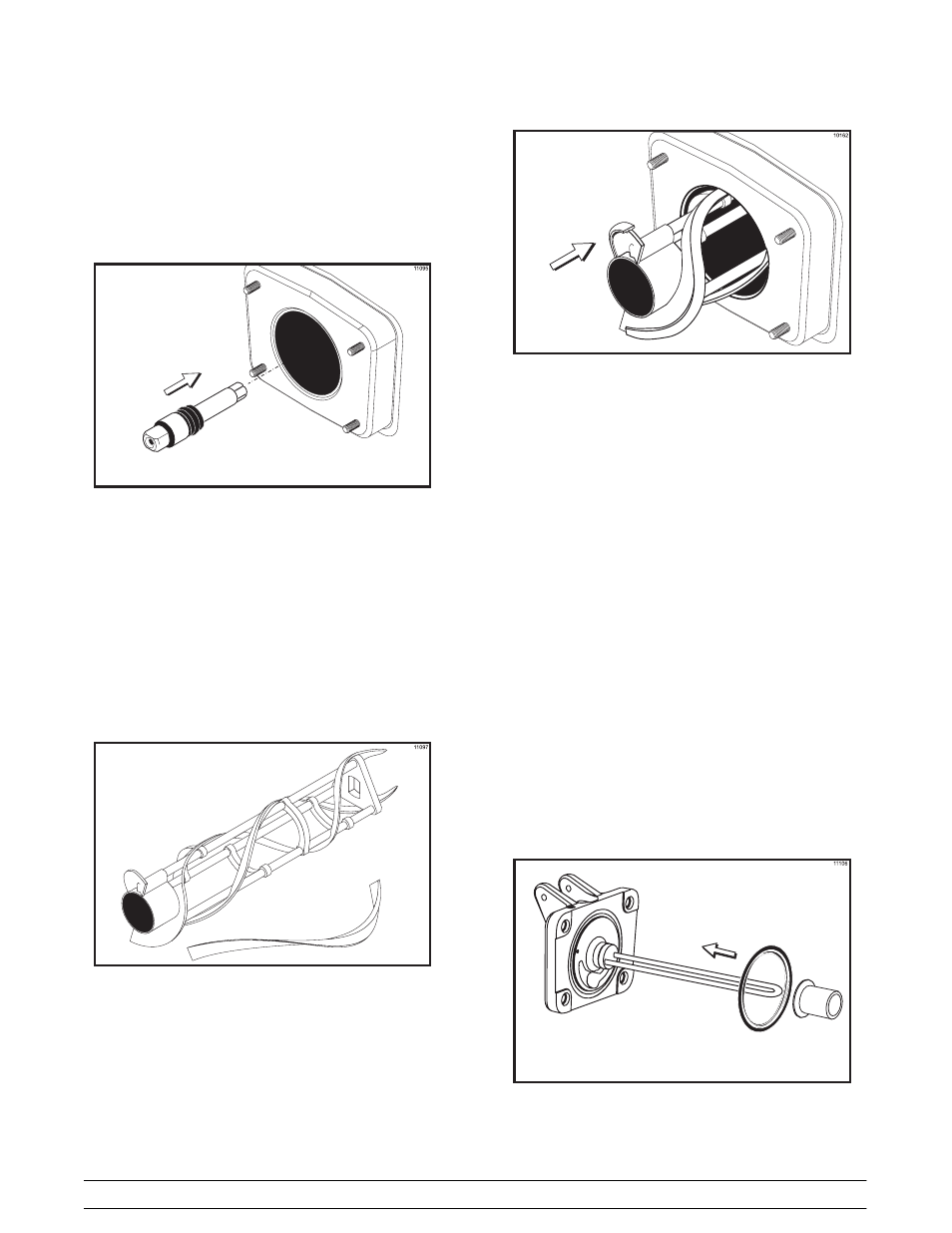

Insert the drive shaft into the freezing cylinder, hex end
first, and into the rear shell bearing until the seal fits
securely over the rear shell bearing. Engage the hex
end firmly into the drive coupling. Be sure the drive
shaft fits into the drive coupling without binding.
Figure 4
Step 2
Take one of the scraper blades and slip it under the
hook at the front of the beater. Wrap the blade around
the beater following the helix and pushing the blade
down onto the helix as you wrap. At the back end of the
beater, slip the blade under the hook. Repeat this
step for the second scraper blade.
Figure 5
Holding the beater securely, slide the beater one third
of the way into the freezing cylinder. Looking into the
freezing cylinder, align the hole at the rear of the beater
with the flats on the end of the drive shaft.
Figure 6
Slide the beater the remainder of the way into the
freezing cylinder and over the end of the drive shaft.
The beater should fit snugly, but not so tightly that the
beater cannot be turned slightly to engage the drive
shaft. If the beater slides in too easily with little or no
resistance, there will not be enough force against the
beater to hold the blades in place. If this is the case,
contact your authorized Taylor service technician.
Repeat steps 1 and 2 for the other side of the freezer
on Models 754, 774, and 794.
Step 3
Assemble the freezer door. Place the large rubber
gasket(s) into the groove(s) on the back side of the
freezer door.
Slide the white plastic front bearing(s) over the baffle
rod(s) onto the bearing hub(s) making certain that the
flanged end of the bearing is resting against the freezer
door.
Note: Do not lubricate the gasket(s) or the front
bearing(s).
Figure 7
