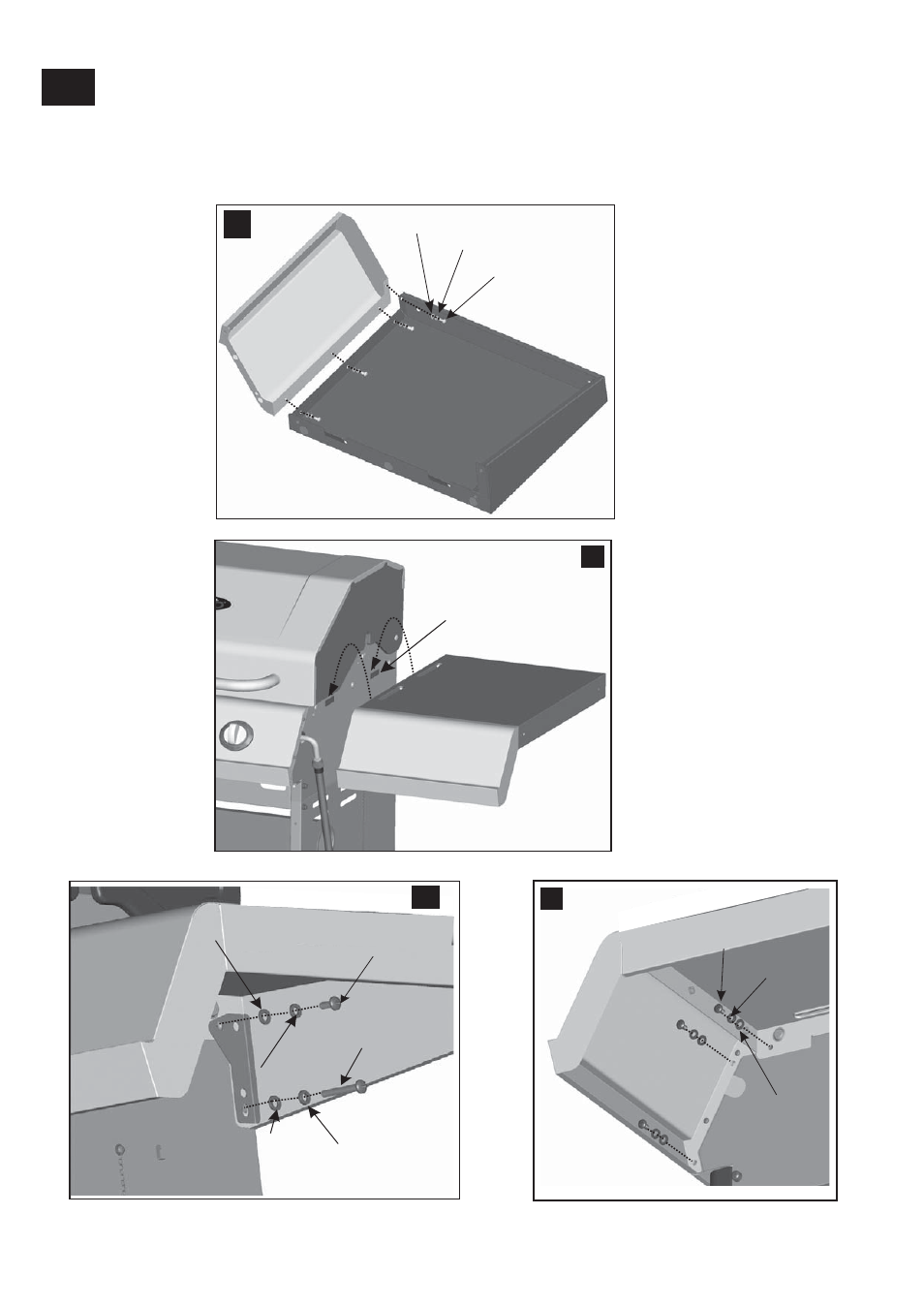

7 Attach right side fascia to right side shelf using four #10-24x3/8” screws, 5mm lock washers and 5mm flat washers, shown A.
Attach one 1/4-20x1-1/2” screw, one 1/4-20x1/2” screw,two 7mm lock washers and two 7mm flat washers at the rear shelf,
shown C.
Attach three 1/4-20x1/2” screw, 7mm lock washers and 7mm flat washers at the front shelf, shown D.
7mm Flat Washer
7mm Lock Washer
1/4-20x1-1/2” Screw
7mm Flat Washer
7mm Lock Washer
1/4-20x1/2” Screw
C
#10-24x3/8” Screw
5mm Lock Washer
5mm Flat Washer
right side fascia
A
Insert flange on right side shelf into side shelf brackets on right side of firebox, shown B.
side shelf bracket
B
7mm lock Washer
7mm Flat Washer
D
1/4-20x1/2” Screw
