Char-Broil 463250510 - Manual (Page 13)

13

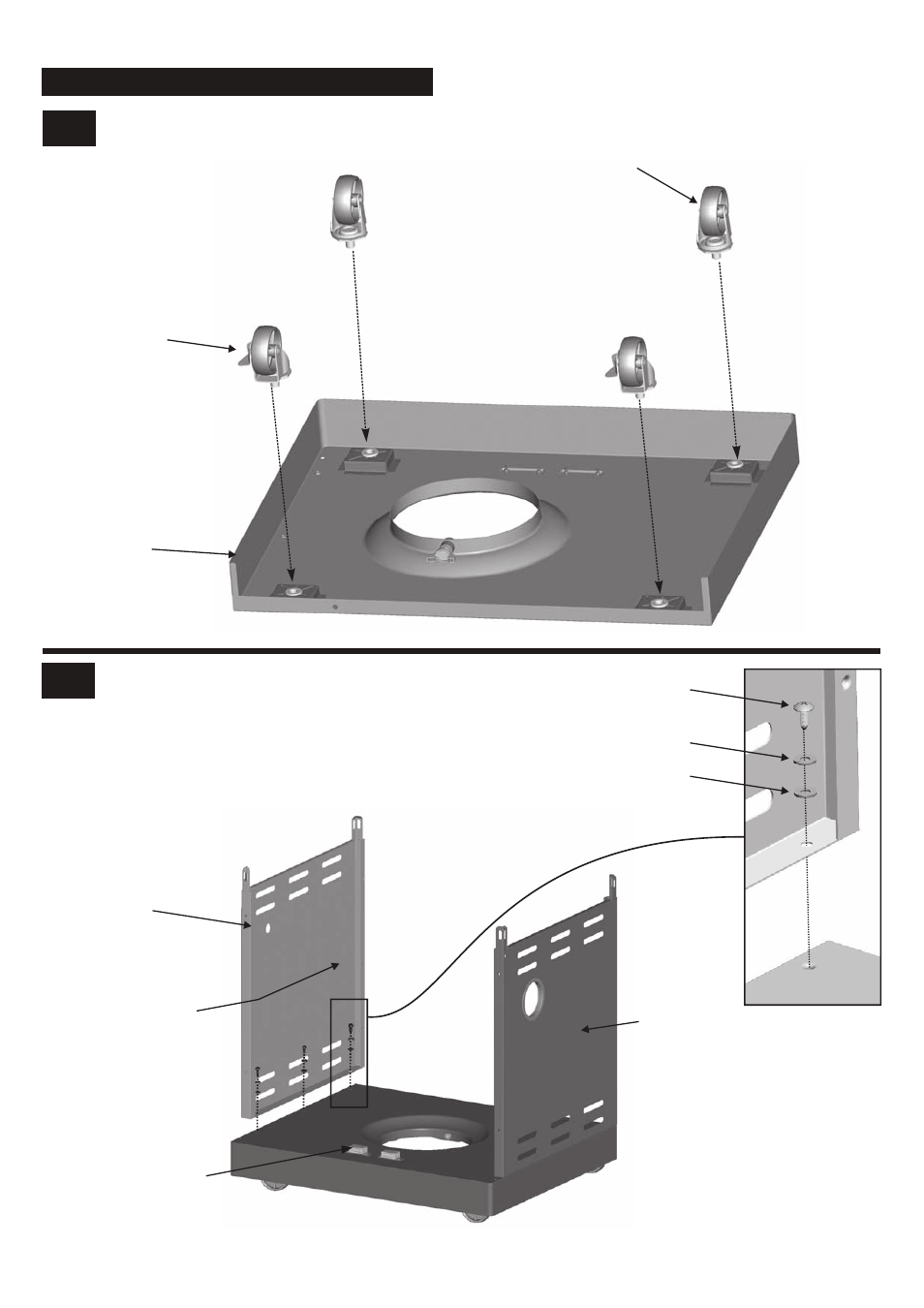

ASSEMBLY
2
1/4-20x1/2” screw
1
Attach side panels to bottom shelf using three
1/4-20x1/2” screws, 7mm lock washers, and
7mm flat washers per panel.
IMPORTANT: Panel with large hole must
be on left side of bottom shelf.
7mm lock washer
7mm flat washer
Locking caster
Bottom shelf
Fixed caster
Rear
Front
Left side panel
Door magnet
(with large hole)
Make sure side panels
are pushed as far to the
rear of bottom shelf as
possible before fully
tightening screws.
Right side panel
Attach the two locking casters at the rear of the bottom shelf and the two fixed casters at the front.
Use the provided caster wrench to fully tighten casters.
