30 Hard Drive(s)
Replacing the Hard Drive(s)
1 Follow the instructions in "Before You Begin" on page 9.
2 Remove the new hard drive from its packaging.
Save the original packaging for storing or shipping the hard drive.
3 Place the hard-drive bracket on the hard drive.
4 Replace the four screws that secure the hard-drive bracket to the hard
drive.
5 Replace hard drive 1 and/or hard drive 2 in the computer base:
• Place the hard-drive assembly in the computer base.
• Using the pull-tab, slide the hard-drive assembly into the connector
on the system board.
• Replace the four screws that secure the hard-drive assembly to the
computer base.
6 Replace the memory module(s) (see "Replacing the Memory Module(s)"
on page 18).

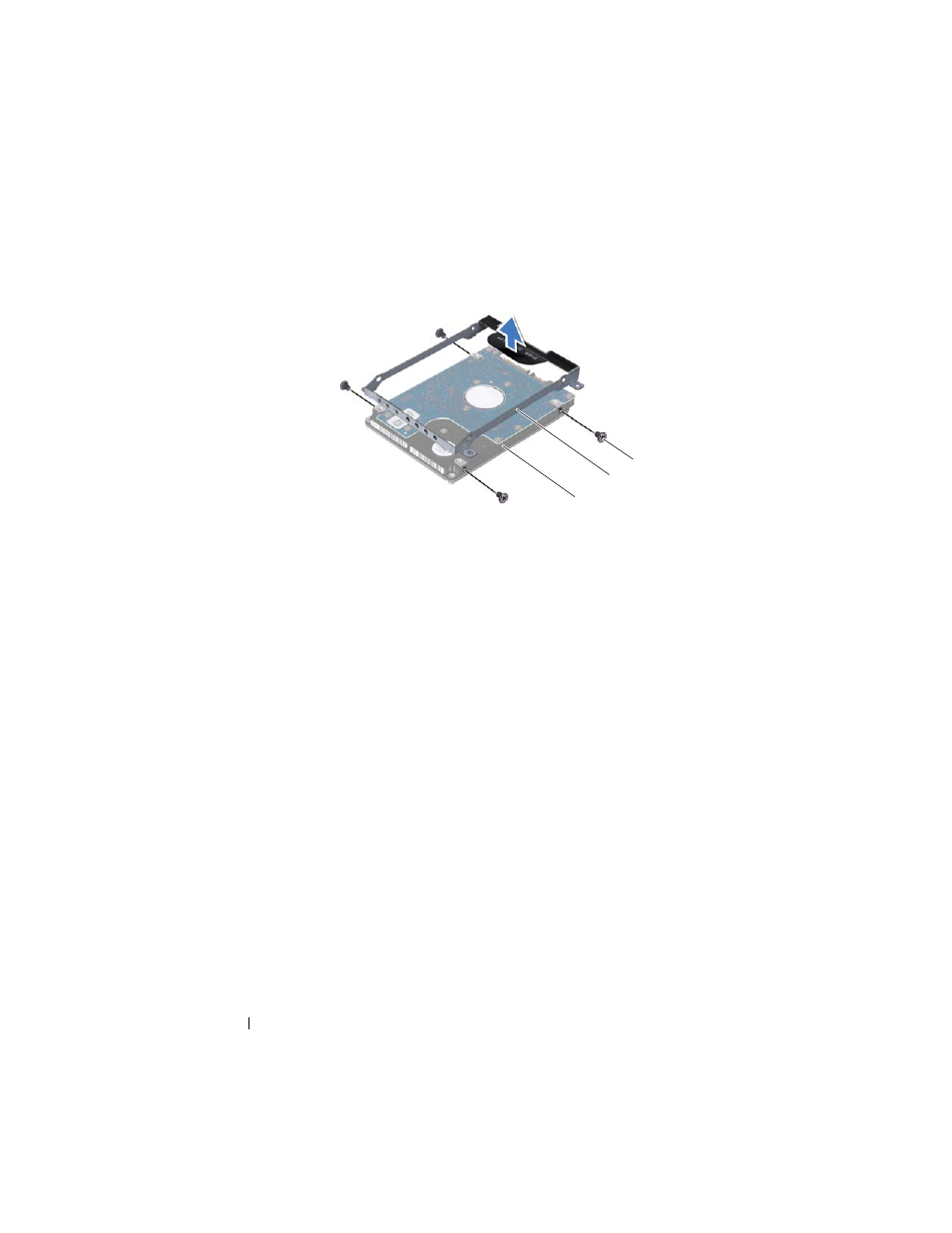

1 hard drive 2 hard-drive bracket
3 screws (4)
