About Your TV
7

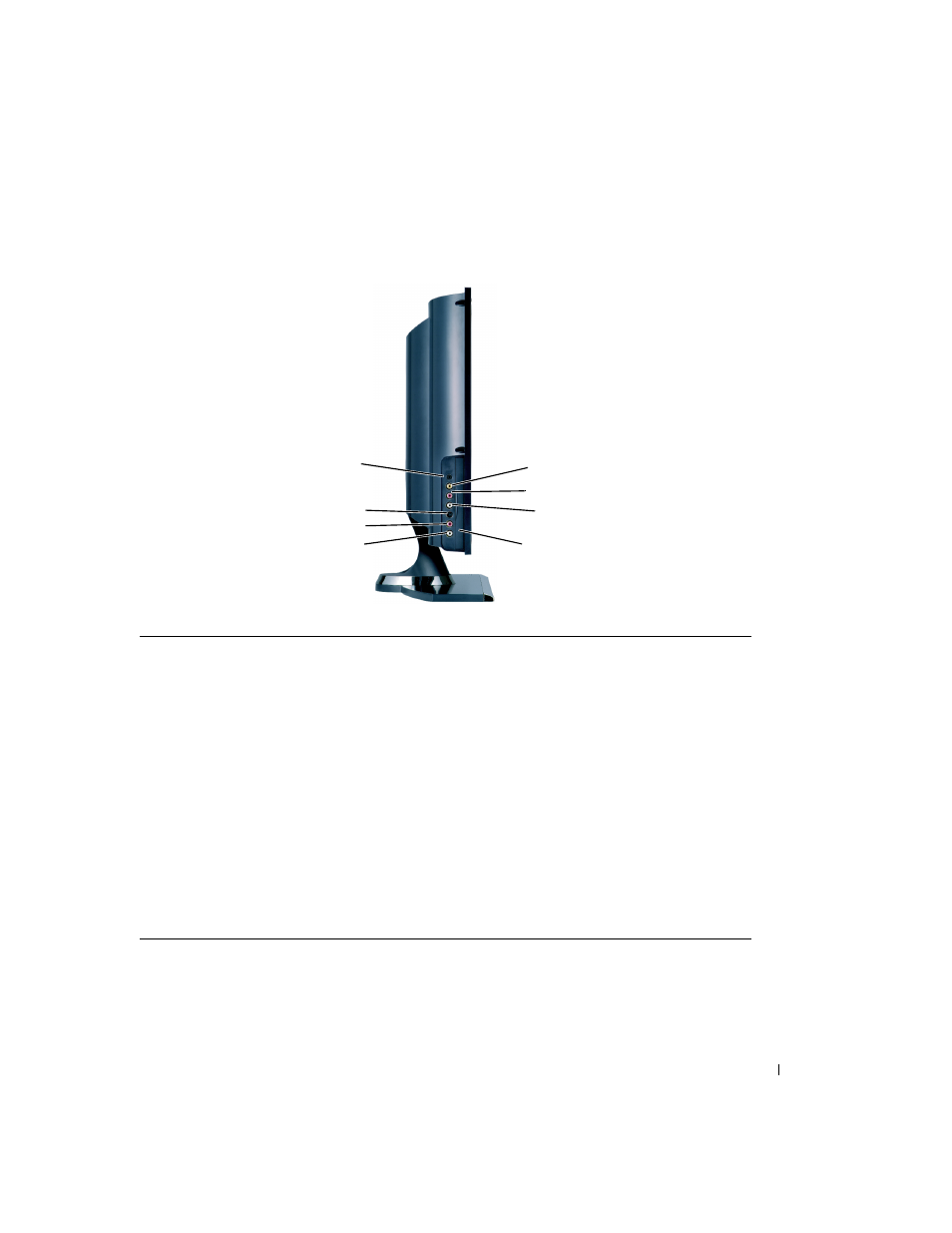

Left Side View
1 Composite video connector (AV1) Use the side composite connector for devices you connect
occasionally such as a video game system
2 R (composite right audio
connector) Use the audio connector if you have connected a device to
composite connector (AV1)
3 L (composite left audio connector) Use the audio connector if you have connected a device to
composite connector (AV1)
4 Card reader panel Remove this panel if you are installing a card reader
5 L (S-Video left audio connector) Use the audio connector if you have connected a device to
the S-Video connector (AV3)
6 R (S-Video right audio connector) Use the audio connector if you have connected a device to
S-Video connector (AV3)
7 S-Video connector (AV3) Use the side S-Video connectors for devices that you connect
occasionally, such as a camcorder
8 Headphone connector Connect headphones
4
8 1
2
5
7
6 3
