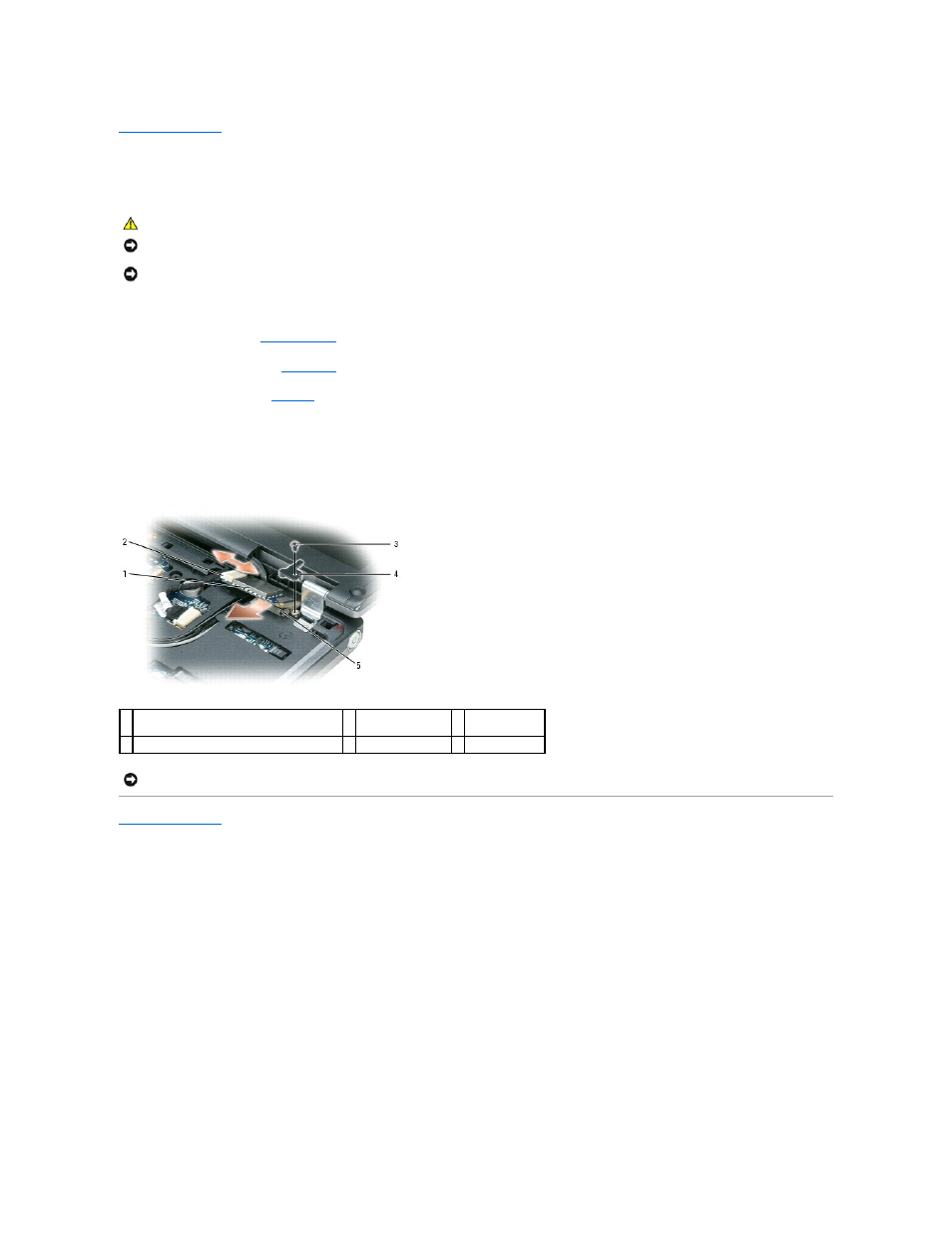

Internal Card With Bluetooth® Wireless Technology

Dell™ Latitude™ D420 Service Manual




If you ordered an internal card with Bluetooth wireless technology with your computer, it is already installed.



1.

Follow the procedures in

Before You Begin

.




2.

Remove the hinge cover (see

Hinge Cover

).




3.

Remove the keyboard (see

Keyboard

).




4.

Remove the M2 x 3-mm screw from the card holder and lay the holder aside.



5.

Lift the card away from the aligning pin.



6.

Disconnect the card cable connector from the card.

Back to Contents Page



CAUTION:

Before performing the following procedures, read the safety instructions in your Product Information Guide.

NOTICE:

To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching a connector on the back panel of

the computer.

NOTICE:

To prevent damage to the system board, remove the main battery before you service the computer.

1 internal card with Bluetooth wireless

technology

2 card cable

connector

3 M2 x 3-mm

screw

4 card holder

5 aligning pin





NOTICE:

Be careful when removing the card to avoid damaging the card, card cable, or surrounding components.
