Dismantling the hard drive – Dell Latitude D420 User Manual
Page 22

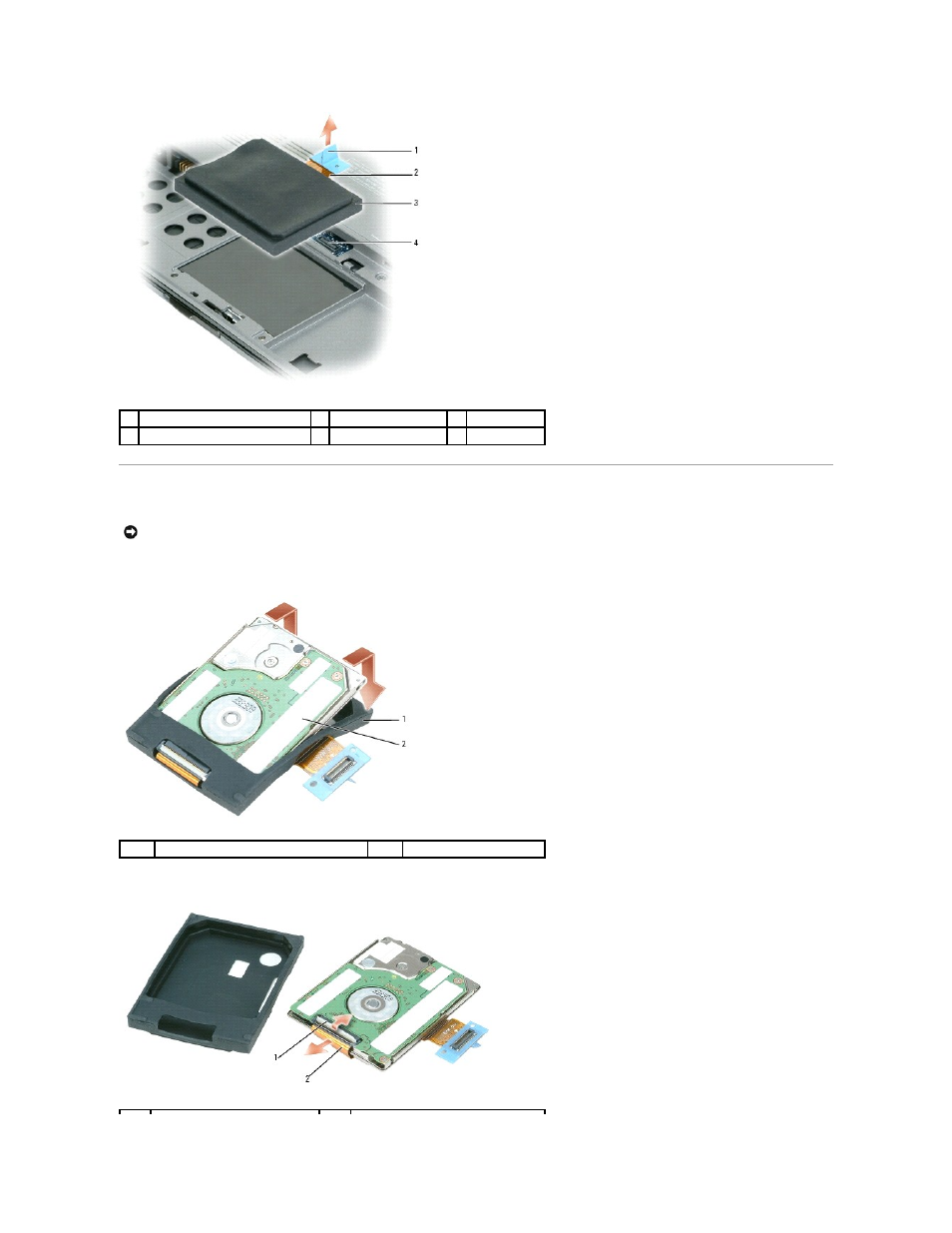

Dismantling the Hard Drive
1.
Use your fingers to carefully remove the protective cover from the hard drive.
2.
Use a hard drive tool to carefully pry up the ZIF connector that holds the hard drive cable, and remove the cable.
1
pull-tab
2
hard drive cable
3
hard drive
4
system board connector
NOTICE:
The replacement hard drive ships with the protective cover and the hard drive cable. Only a certified service technician should dismantle the
hard drive. Damage due to servicing that is not authorized by Dell is not covered by your warranty.
1
protective cover
2
hard drive
