Customizable LEDs
Dell™ XPS M170 Service Manual
Replacing the Customizable LEDs
The system has 3 pairs (total of 6) of Light Emitting Diode sets (LEDs) that can be customized to display a chosen color.

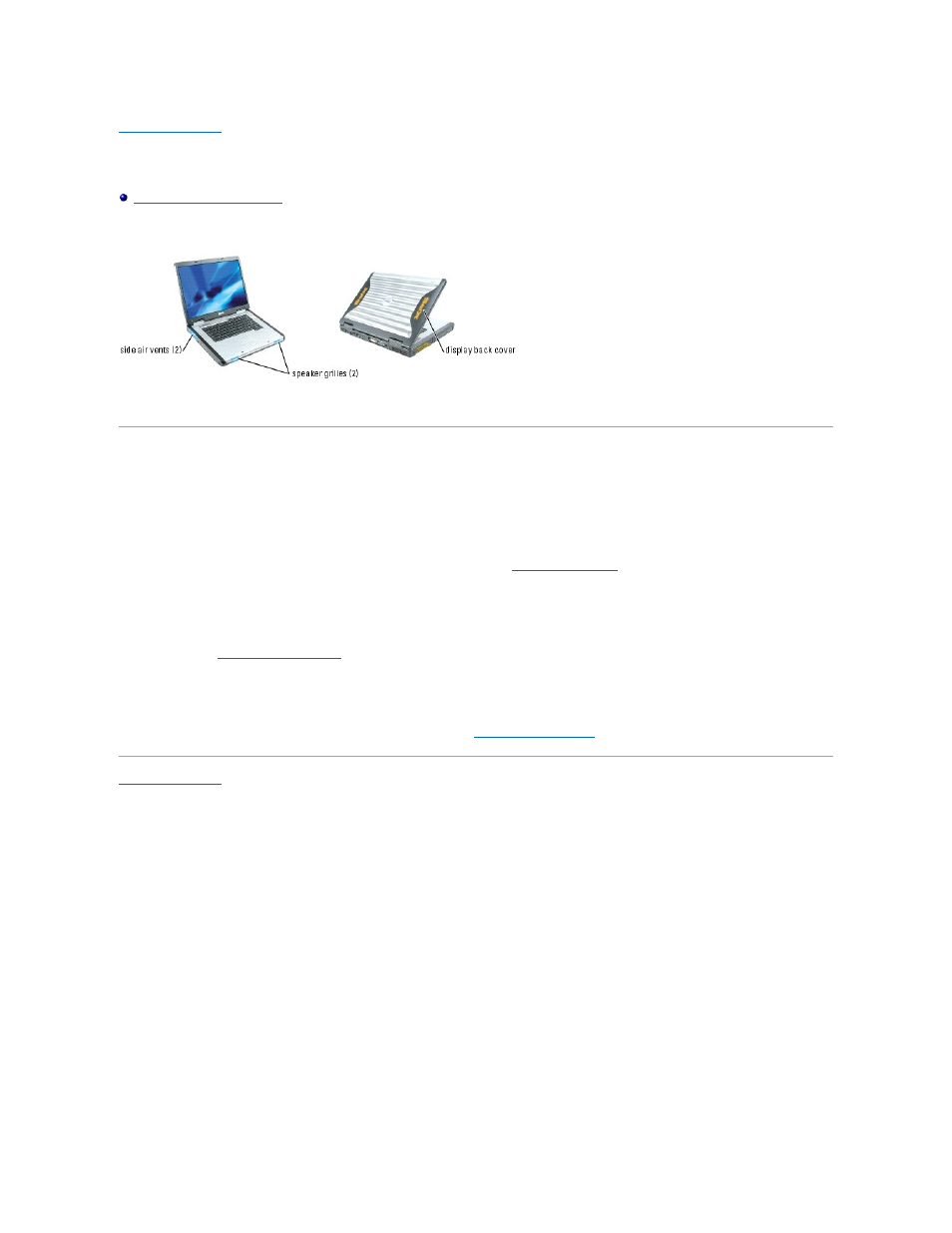

These customizable LEDs emit light from the top, front, and sides of the computer.
Replacing the Customizable LEDs
The LEDs are integrated into other replaceable parts of the computer. To replace an LED set, you must replace the part that holds the LED set.
Front LEDs
The front LEDs are integrated into the system speakers. To replace the front LEDs, see Replacing the Speakers .
Top LEDs
The top LEDs are integrated into the display cover. To replace the top LEDs, you must replace the display cover which is removed during the display panel
removal process. See
Removing the Display Panel .
Side LEDs
The side LEDs are integrated into the system fans. To replace these LEDs, see Removing the System Fans .
