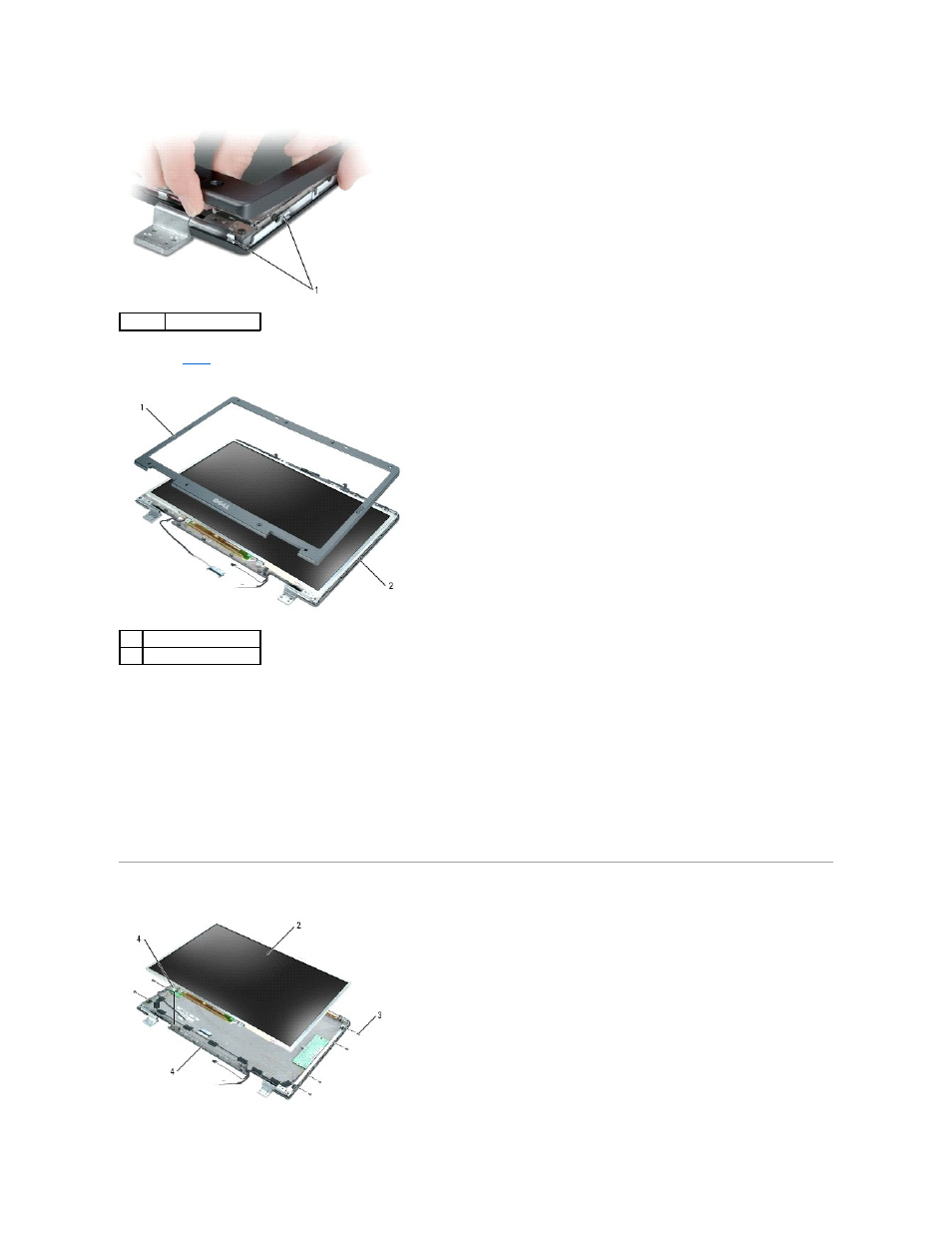

7.

Repeat

step 6

for the lower-left corner of the bezel. Then use your fingers to release the snaps around the rest of the bezel and lift it away from the

cover.



Replacing the Display Bezel



1.

Starting at any corner, use your fingers to gently snap the bezel into place to secure it to the display panel.



2.

Replace the four M2.5 x 5-mm screws on the front of the bezel.



3.

Replace the four shoulder screws and two screw covers.



4.

Replace the six screw-cover/display bumpers around the display assembly.



Display Panel

1

tabs

1

display bezel

2

display panel
