Installing a floppy drive – Dell Dimension 3100C User Manual
Page 20
3.

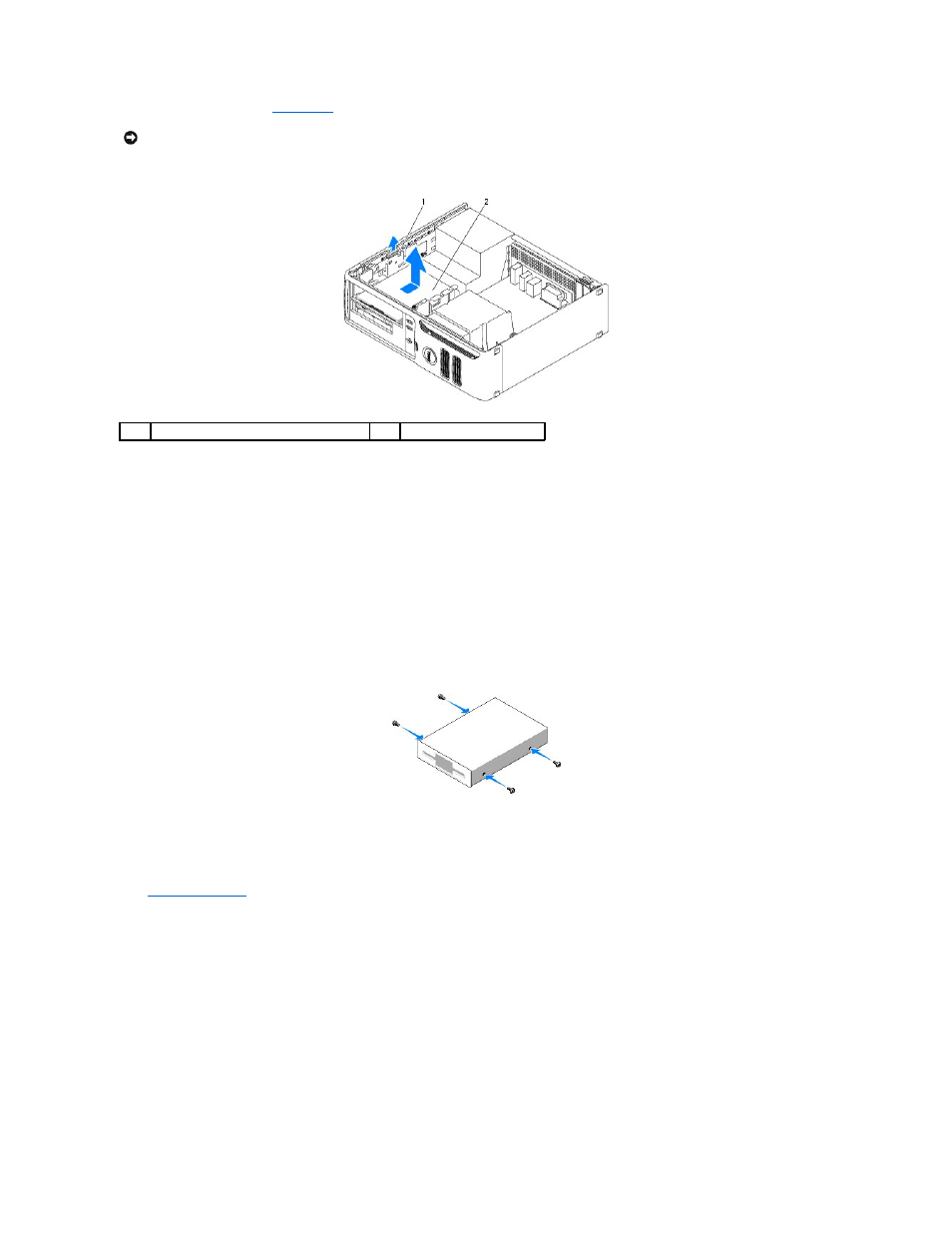

Pull up on the drive release latch and slide the floppy drive towards the back of the computer. Then, lift up to remove the drive from the computer.
4.
Disconnect the power and floppy-drive cables from the back of the floppy drive.
Installing a Floppy Drive
1.
If you are installing a new drive:
a.
Use a small flat-edge screw driver on the back side of the drive-panel insert to gently pop off the insert.
b.
Remove the four shoulder screws from the drive-panel insert.
2.
If you are replacing an existing drive:
a.
Remove the four shoulder screws from the existing drive.
b.
Insert the four shoulder screws into the sides of the new floppy drive and tighten them.
3.
Attach the power and floppy-drive cables to the floppy drive.
4.
Align the shoulder screws with the screw guides, and slide the drive into the bay until it clicks into place.
5.
NOTICE:
Do not pull the drive out of the computer by the drive cables. Doing so may cause damage to cables and the cable connectors.
1
drive release latch
2
floppy drive
