Dell KVM 4322DS User Manual
Page 6
Mounting and Cable Routing Procedures for Dell™ Digital KVM’s (1082DS, 2162DS, 4322DS)
Page 4
Please note that installation of the KVM where the ports face the ground is an unsupported
orientation, and can cause damage to the KVM.
See Figures 1 and 2 for the supported locations to mount the Digital KVM in the aforementioned racks.

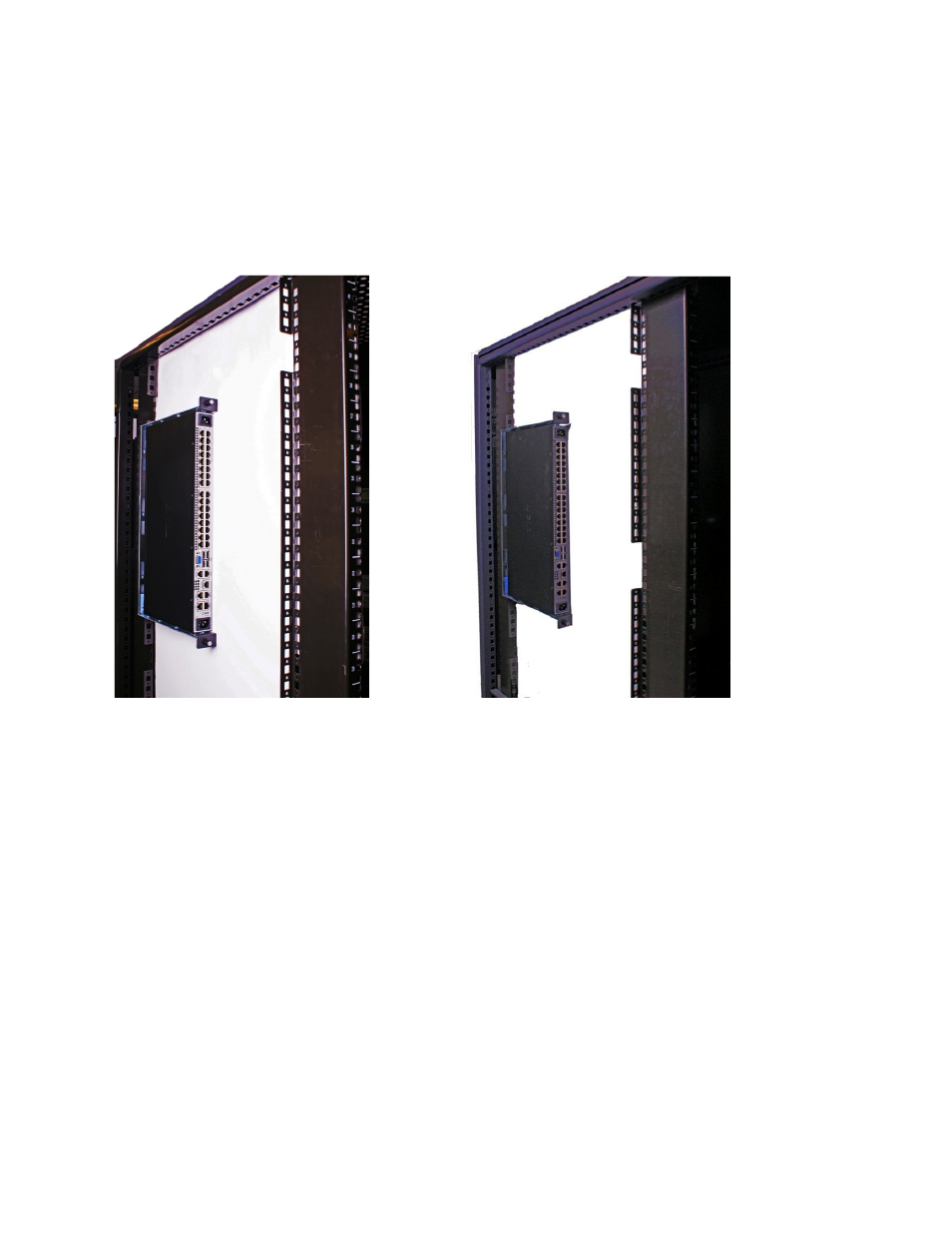

Figure 1: KVM Mounted on Vertical Member
PowerEdge 2410 Vertical
PowerEdge 4210 Vertical Top
