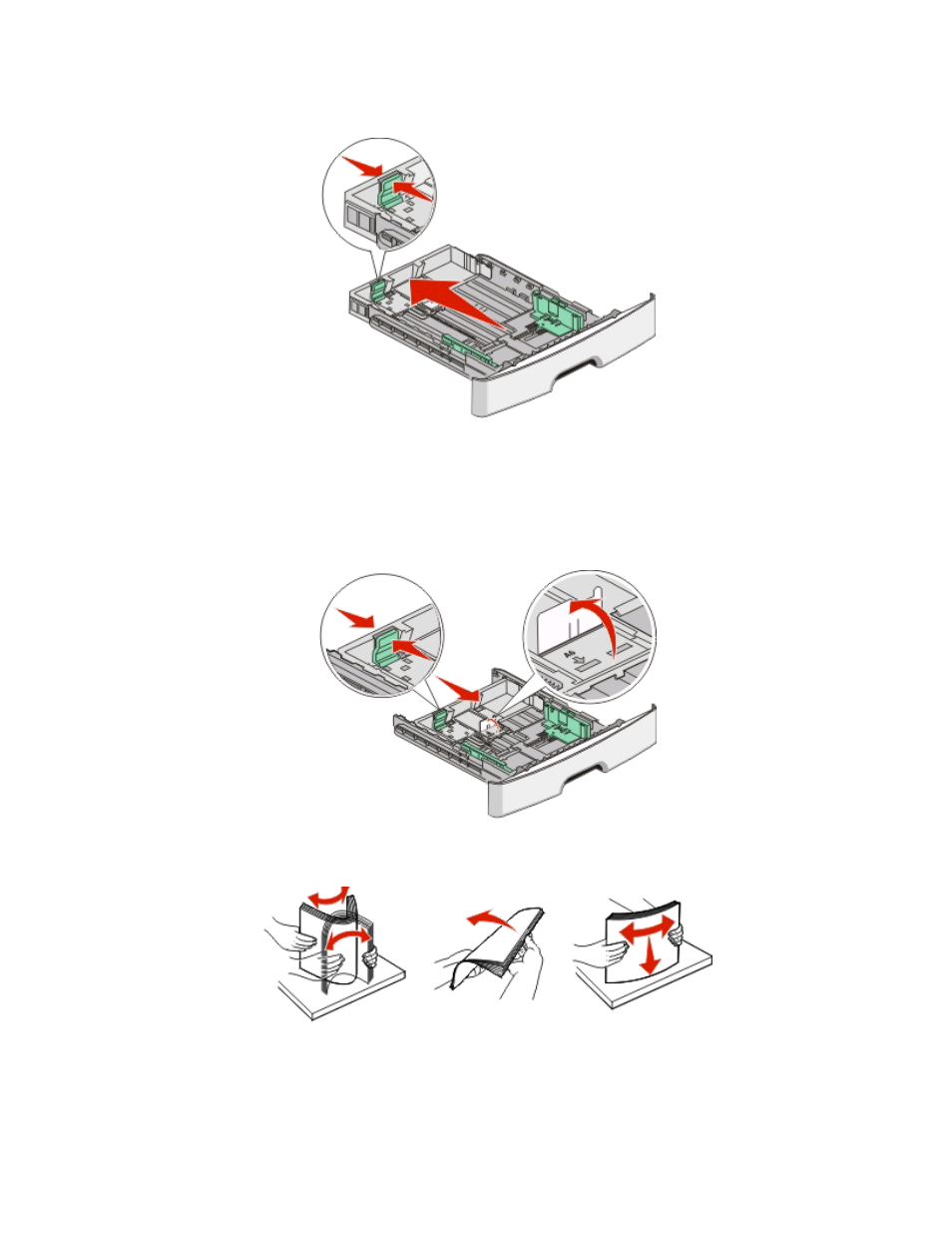

If you are loading a longer size of paper like A4 or legal, squeeze the length guide tabs and slide the length guide
backwards to the position for the length of paper you are loading. The tray extends backwards.
If you are loading A6-size paper:
a Squeeze the length guide tabs together as shown, and slide the length guide toward the center of the tray
to the A6 size position.
b Raise the A6 length guide.
Note: The standard tray accommodates only 150 sheets of A6-size paper.
4 Flex the sheets back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten the
edges on a level surface.
5 Load the paper stack toward the back of the tray as shown with the recommended print side facedown.
Note: Notice the maximum fill line. Do not try to overload the tray. Do not load A6-size paper to the maximum
fill line; the tray holds only 150 sheets of A6-size paper.
Loading paper and specialty media
57
