Dell 2230d/dn Mono Laser Printer - Manual (Page 59)

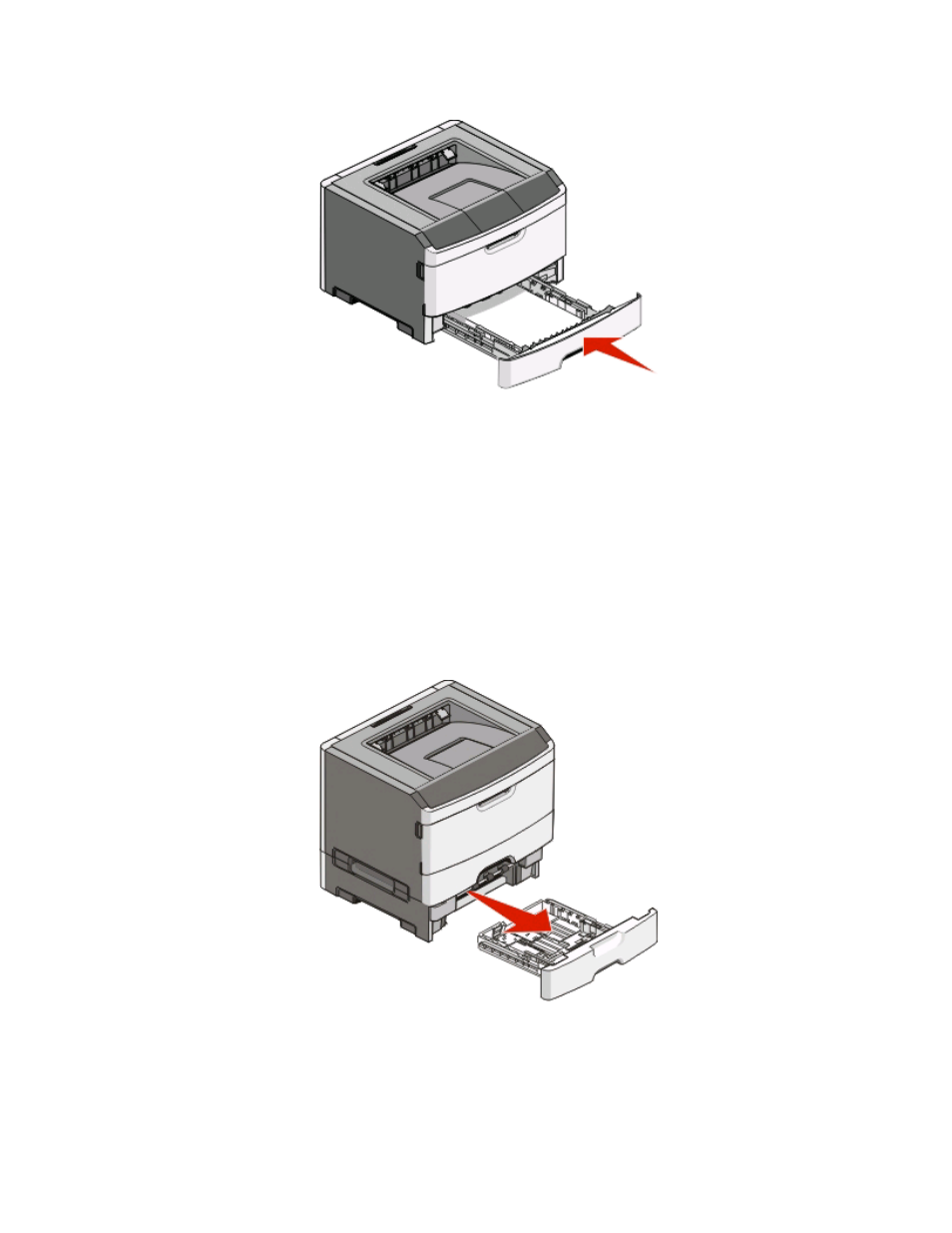

7 Insert the tray.
8 If a different type of paper was loaded than the type previously loaded in the tray, change the Paper Type setting.
For more information, see “Setting the paper size and paper type” on page 55.
Note: The difference between the standard 250-sheet tray and the optional 250- and 550-sheet trays is that the
standard tray accommodates up to 150 sheets of A6-size paper, so the width guides slide farther to the center of the
tray.
Loading the optional 250- or 550-sheet tray
Only one optional drawer, which includes either a 250- or 550-sheet tray, may be attached to the printer at a time.
Regardless of the number of sheets in the optional tray, it is referred to as Tray 2.
1 Pull the tray completely out.
2 See “Loading the standard 250-sheet tray” on page 55 to complete the steps for loading a tray. An optional tray
is loaded in the same way that the standard tray is loaded.
Loading paper and specialty media
59
