security cable slot —

Lets you attach a commercially available antitheft device to the computer. For more information, see the instructions included with the

device.





module bay —

You can install devices such as an optical drive or a Dell TravelLite™ module in the module bay. For more information, see "

Using the Module

Bay

."



device latch release —

Releases the module bay device. See "

Using the Module Bay

" for instructions.



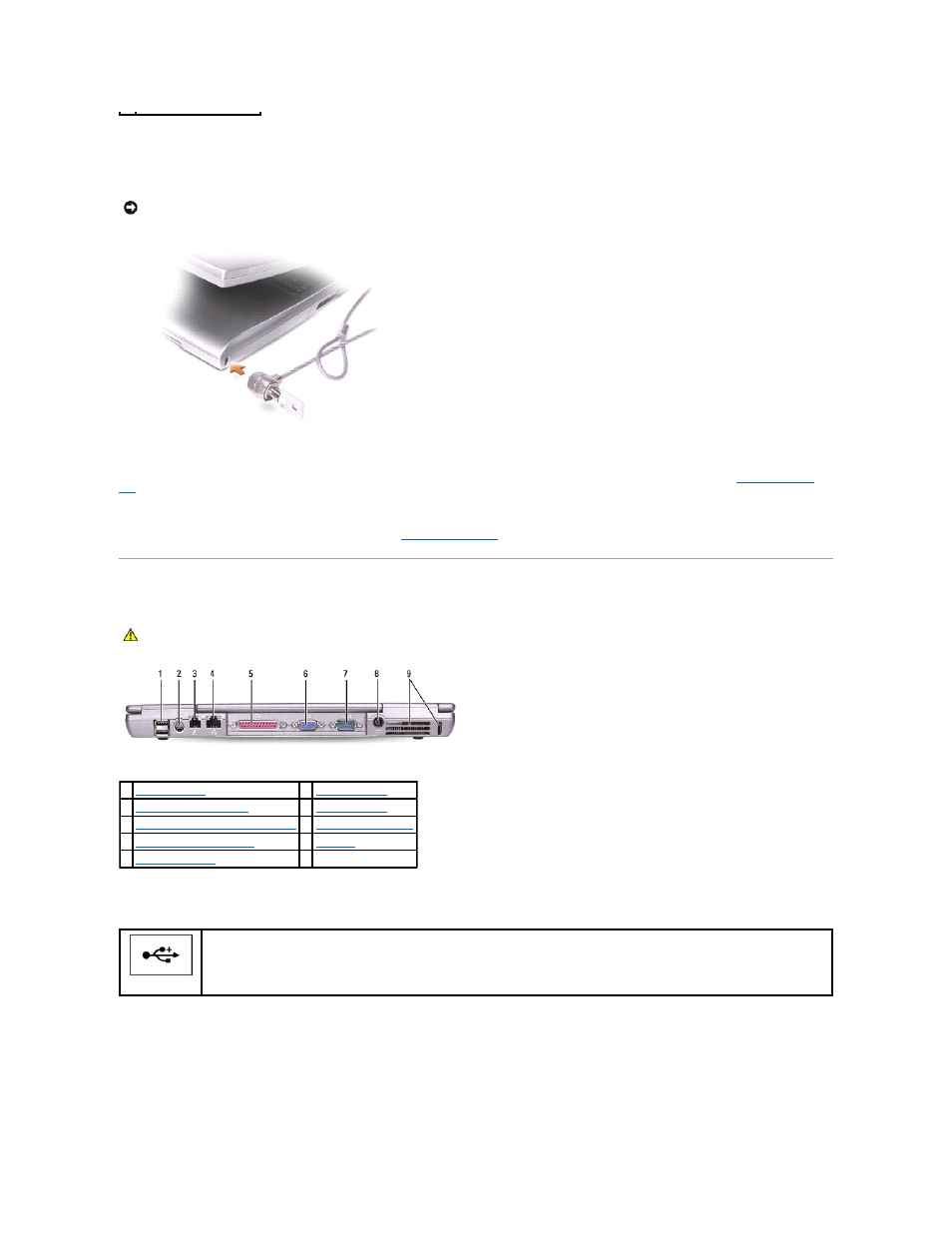

Back View





USB connectors

NOTICE:

Before you buy an antitheft device, ensure that it will work with the security cable slot.

CAUTION:

Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your computer in a low-airflow environment,

such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire.

1

USB connectors

(2)

6

video connector

2

S-video TV-out connector

7

serial connector

3

modem connector (RJ-11) (optional)

8

AC adapter connector

4

network connector (RJ-45)

9

air vents

5

parallel connector





Connect USB devices, such as a mouse, keyboard, or printer. You can also connect the optional floppy drive directly to a USB connector
using the optional floppy drive cable.
