Dell D/Port Advanced Port Replicator - Manual (Page 5)

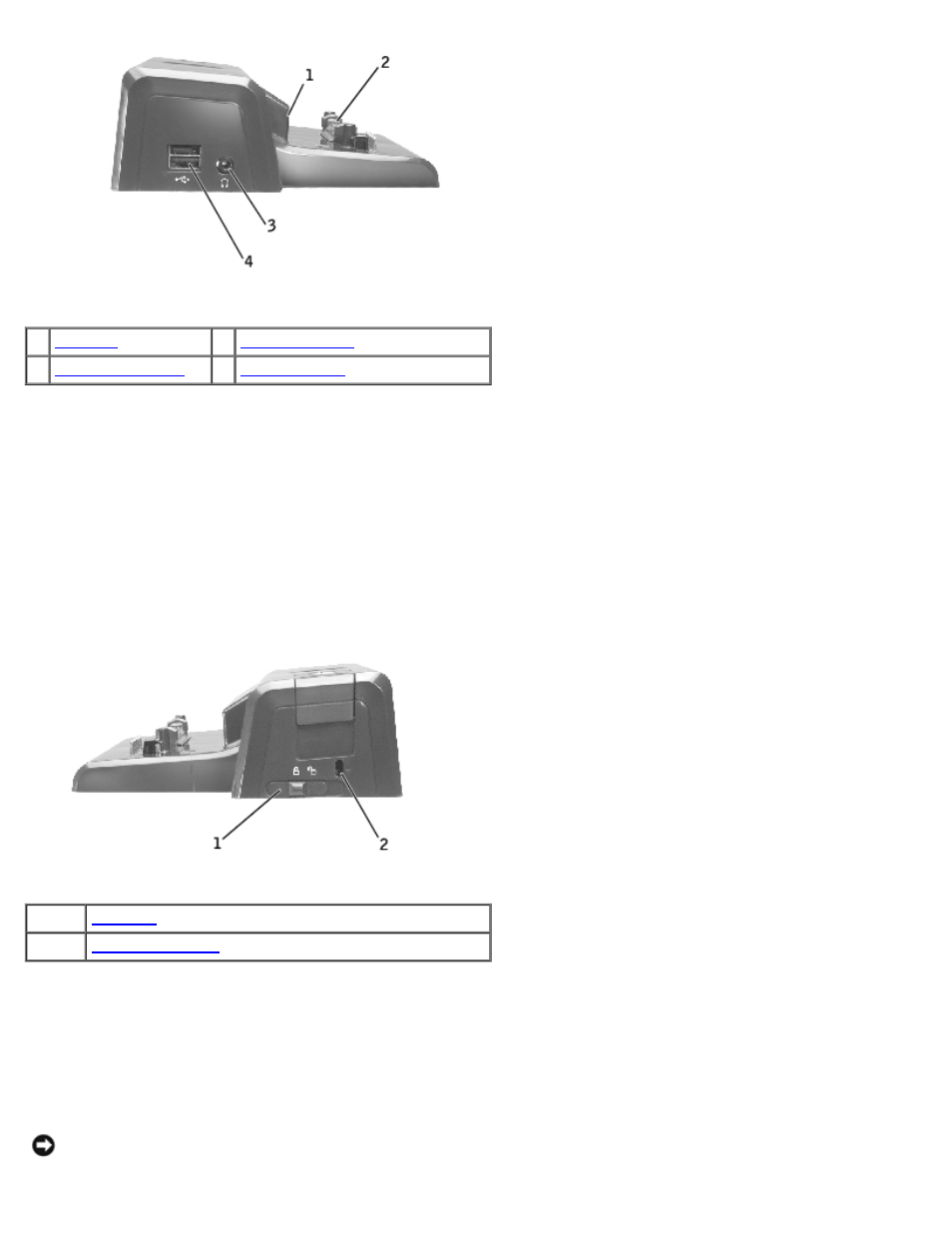

1 backstop 3 audio connector
2 docking connector 4 USB connector for Dell D/Bay
backstop — Lets you correctly position the computer for docking.
docking connector — Lets you connect the portable computer to the APR.
audio connector — Lets you attach headphones to the APR.
USB connector — Lets you connect a Dell D/Bay external module bay. The lower portion of the connector also accepts a
standard USB 2.0 cable.
Right View
1 slide lock
2 security cable slot
slide lock — Lets you lock the APR to secure the computer in the APR.
security cable slot — Lets you attach an antitheft device to the APR. when the slide lock is in the locked position. The red
color in the security cable slot indicates the unlocked position.
Monitor Stand (Optional)
NOTICE: The stand supports monitors that weigh up to 45.3 kg (100 lb). Heavier monitors may damage the stand,
computer, or APR.
