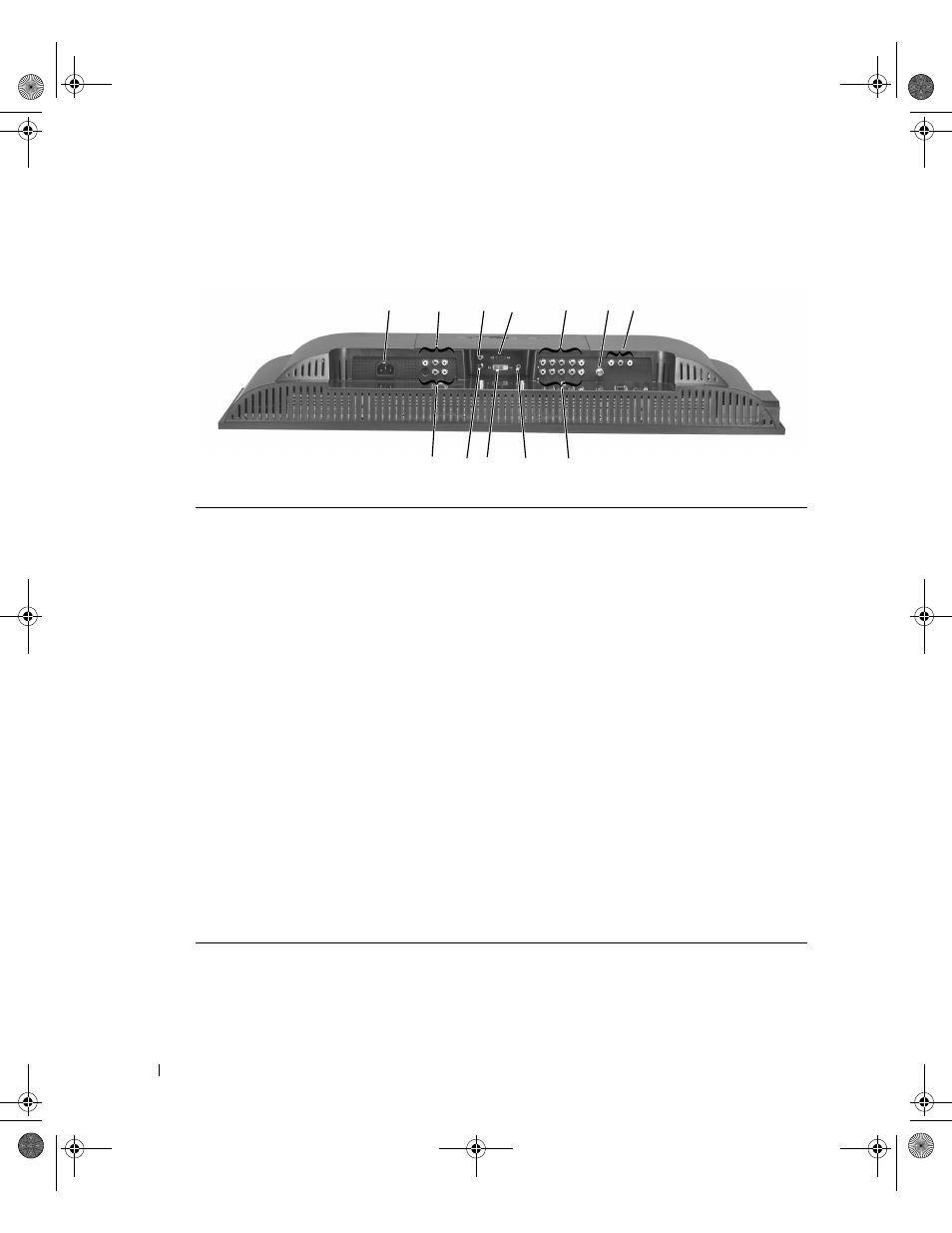

Bottom View
1
Power connector
Connect your power cord.
2
Composite video and audio
connector (AV2)
Connect devices such as a VCR or DVD player.
3
DVI audio connector (L)
Use the DVI audio connector if you have connected a device to
the DVI connector.
4
VGA connector
Use the VGA connector to use your TV as a monitor for your
computer.
5
Component audio and video
connectors (AV6)
Connect devices such as a DVD player, satellite or cable box.
6
ANT/Cable
Connect an antenna or cable box.
7
Composite Audio/Video Out
connector
Connect a device such as a VCR if you have connected an
antenna or cable through the ANT/Cable connector.
8
Component audio and video
connector (AV5)
Connect devices such as a DVD player, satellite or cable box.
9
Audio connector for your computer Connect the audio cable from your computer to the TV.
10
DVI connector
Connect devices such as a DVD player, set-top box, or your
computer.
11
DVI audio connector (R)
Use the DVI audio connector if you have connected a device to
the DVI connector.
12
S-Video connector (AV4)
Connect devices such as a video game system or a DVD player.
