Half Height Blades
The M600, M605 and M610 are half height form factor server blades. They feature a Broadcom 57XX dual port
embedded Ethernet LOM’s driving fabric “A” and two mezzanine card slots supporting fabrics “B” and “C”. Figure 4
depicts the layout of optional mezzanine cards.

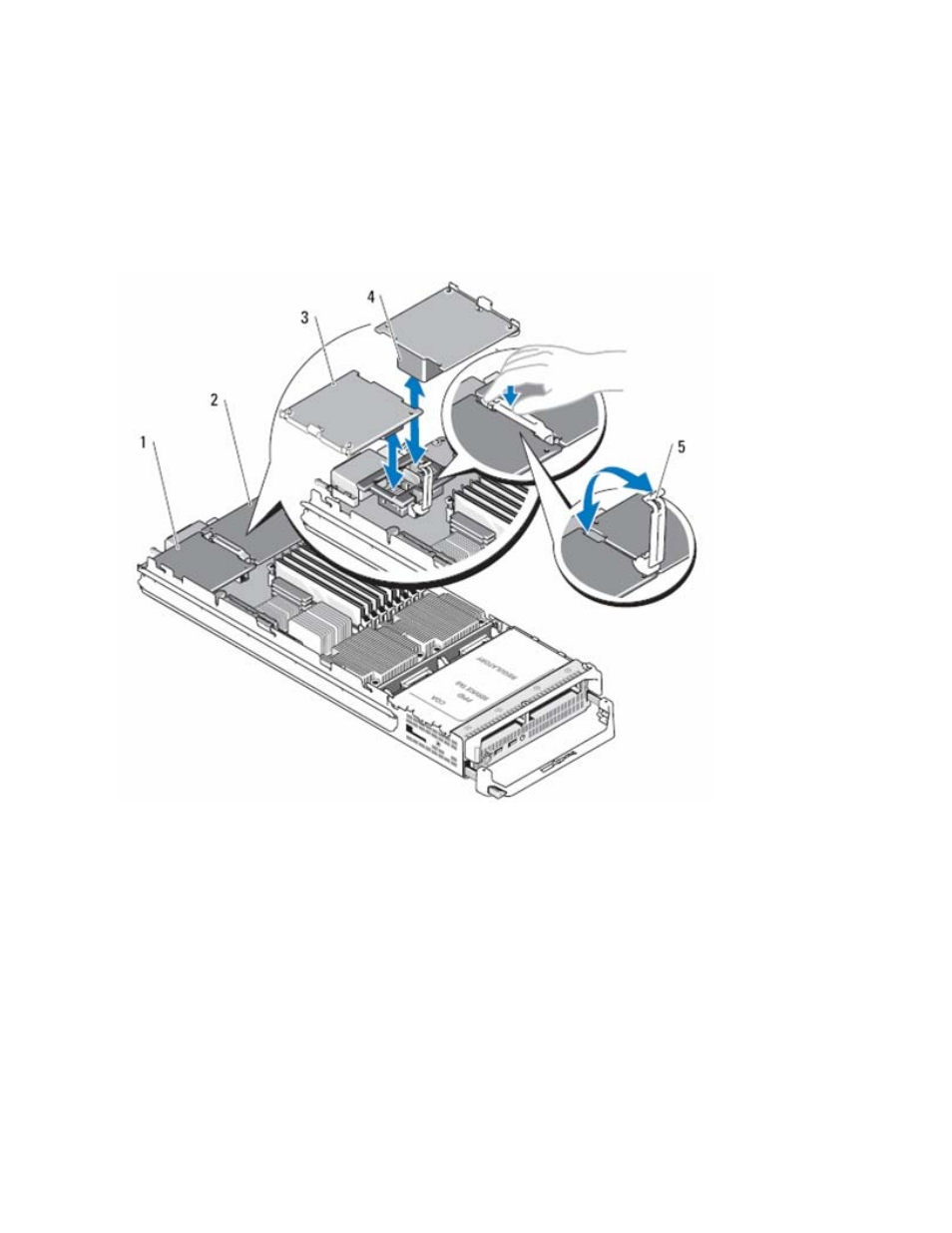

FIGURE 4
Half HEIGHT BLADE
1. Fabric C mezzanine card slot “Mezz1-FAB_C”
2. Fabric B mezzanine card slot “Mezz2-FAB_B”
3. mezzanine card
4. mezzanine card connector
5. retention latch
