Center Control Cover
Dell™ Vostro™ A840/A860 Service Manual
Removing the Center Control Cover
Replacing the Center Control Cover

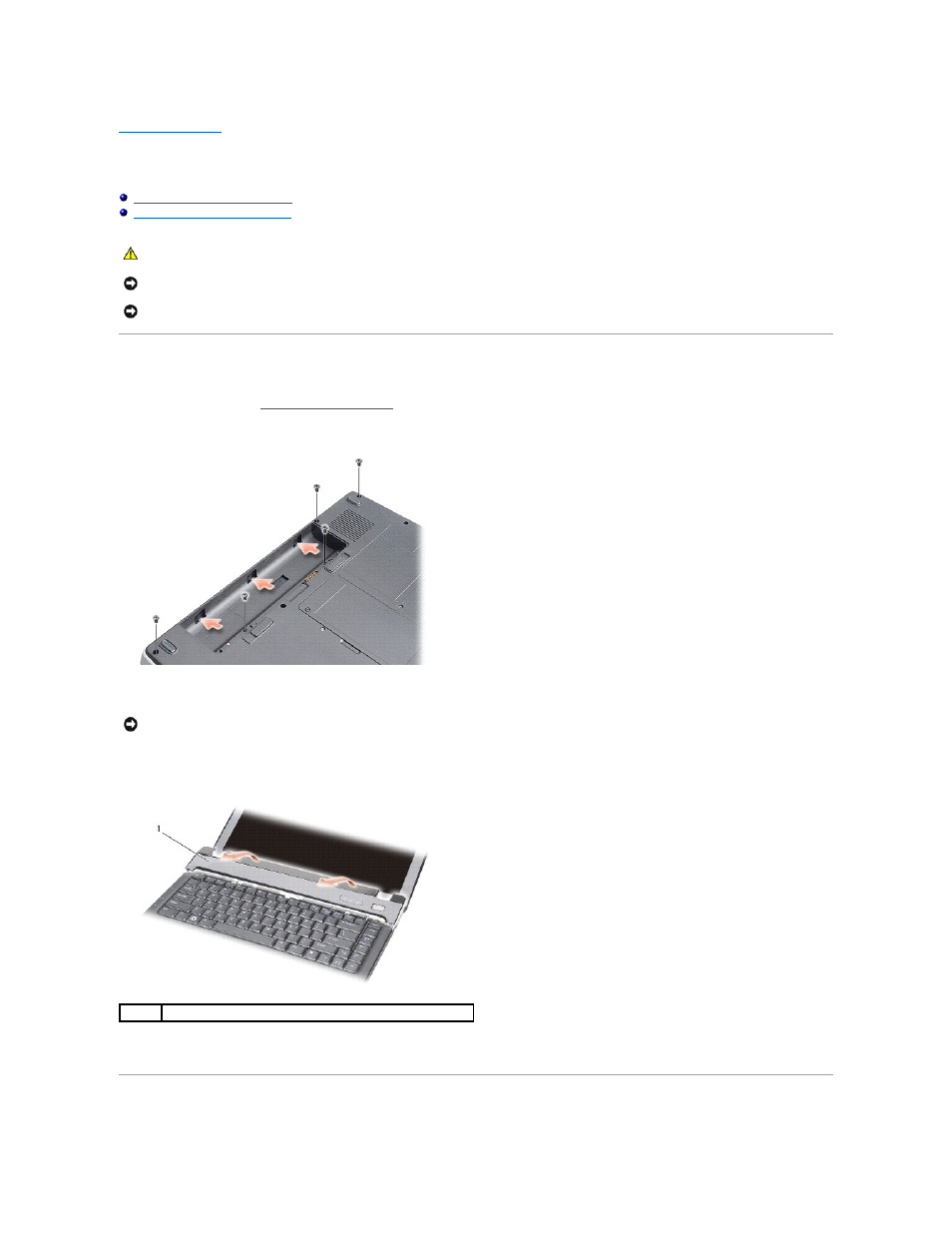

Removing the Center Control Cover
1. Follow the procedures in "Before You Begin" on page 9 .
2. Turn the computer over and remove the three screws from the back of the computer.
3. Turn the computer over and open the display as far as possible.
4. Pry out the center control cover from left to right.
.
5. Remove the center control cover.
Replacing the Center Control Cover
CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as a connector on the back of the computer).
NOTICE: To help prevent damage to the system board, you must remove the battery from the battery bay before you begin working inside the
computer.
NOTICE: Be extremely careful when removing the center control cover. The cable connector is very fragile.
1 center control cover
