Display Panel
Removing the Display Panel
1.
Follow the instructions in
Before Working Inside Your Computer
.
2.
Remove the display assembly (see
).
3.
).
4.
Remove the eight M2 x 3-mm screws (four on each side of the display panel).
5.
Lift the display panel out of the display back cover.
6.
Press in both sides of the top flex-cable connector, and pull the top flex-cable connector away from the display connector.
7.
Use the pull-tab to disconnect the bottom flex-cable connector from the inverter connector.
CAUTION:
Before you begin the following procedure, follow the safety instructions in the Product Information Guide.
NOTICE:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by touching an unpainted metal surface on the computer.
NOTICE:
To help prevent damage to the system board, you must remove the main battery (see
Before Working Inside Your Computer
) before you
begin working inside the computer.

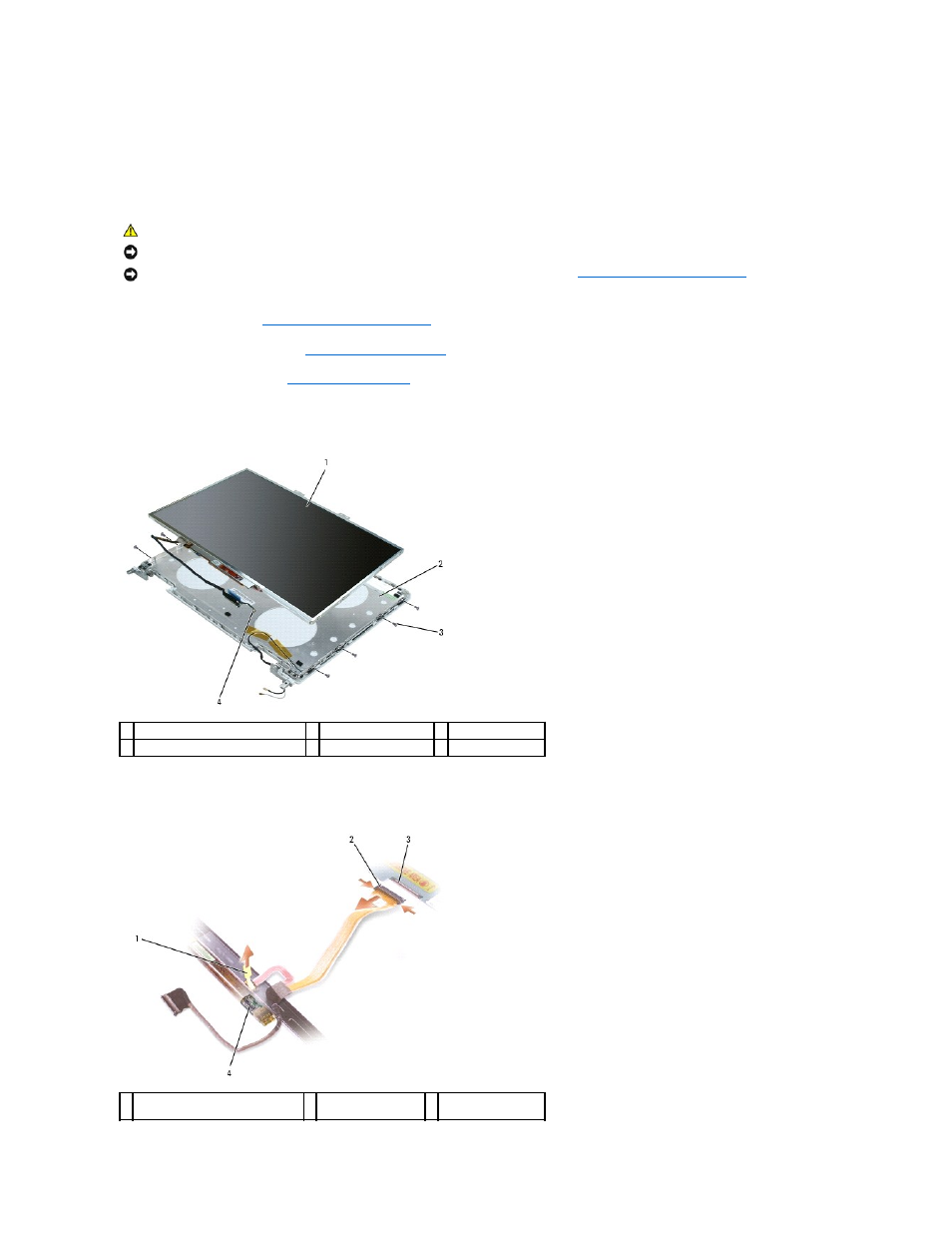

1 display panel
2 M2 x 3-mm screws (8)
3 display back cover
4 grounding wire and captive screw
1 pull-tab on bottom flex-cable
connector
2 top flex-cable
connector
3 display cable
connector
