Dell Inspiron 6400 User Manual
Page 11
5.
Install the replacement Mini-Card:
a.
Insert the Mini-Card connector into the system board connector at a 45-degree angle, and then press the other end of the Mini-Card down into
the securing tabs until the card clicks into place.
b.
Connect the two antenna cables to the Mini-Card (black cable to the connector labeled "AUX" and the white cable to the connector labeled
"MAIN").
Back to Contents Page
NOTICE:
To avoid damage to the Mini-Card, never place cables under the card.

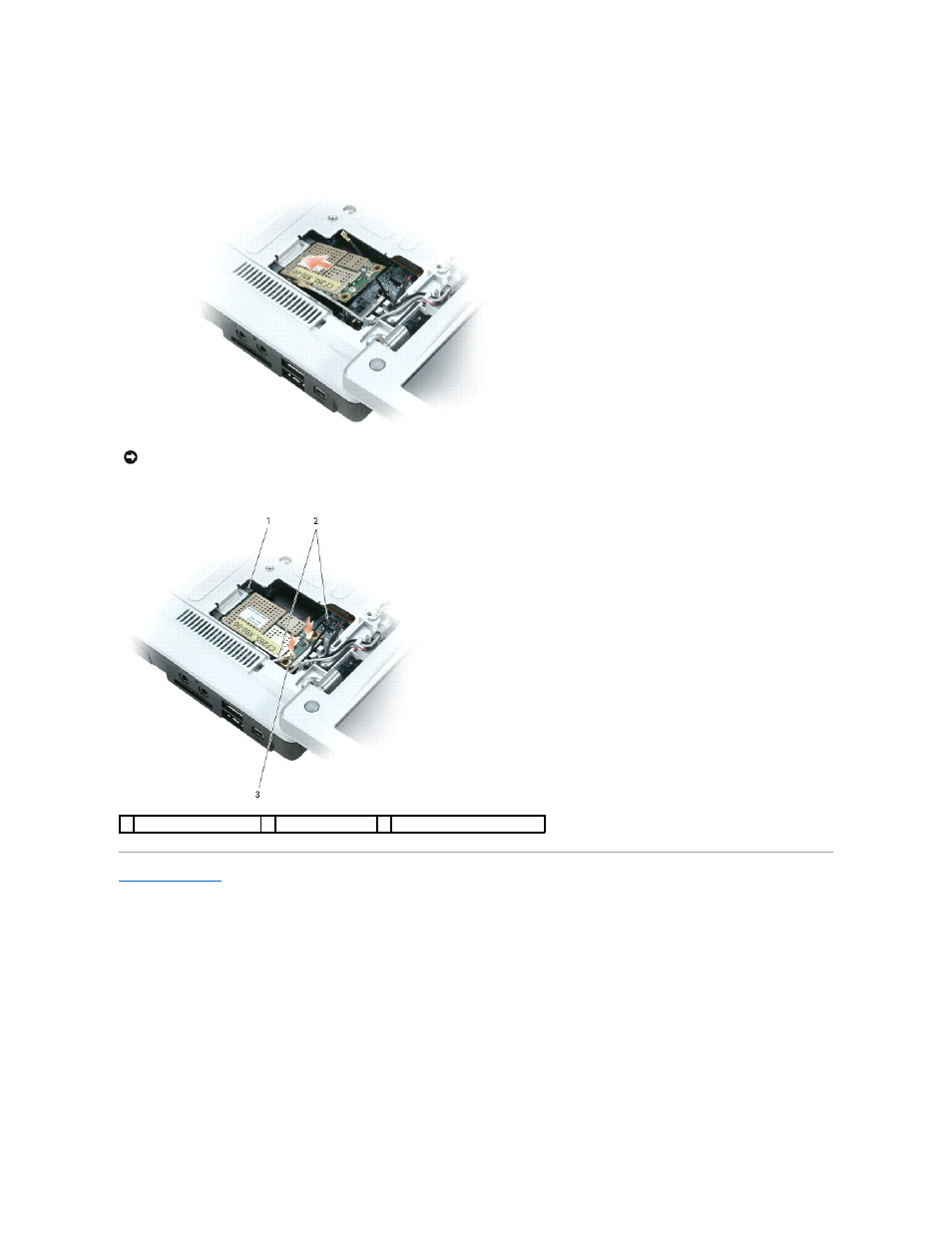

1 system board connector
2 antenna cables (2)
3 antenna cable connectors (2)
