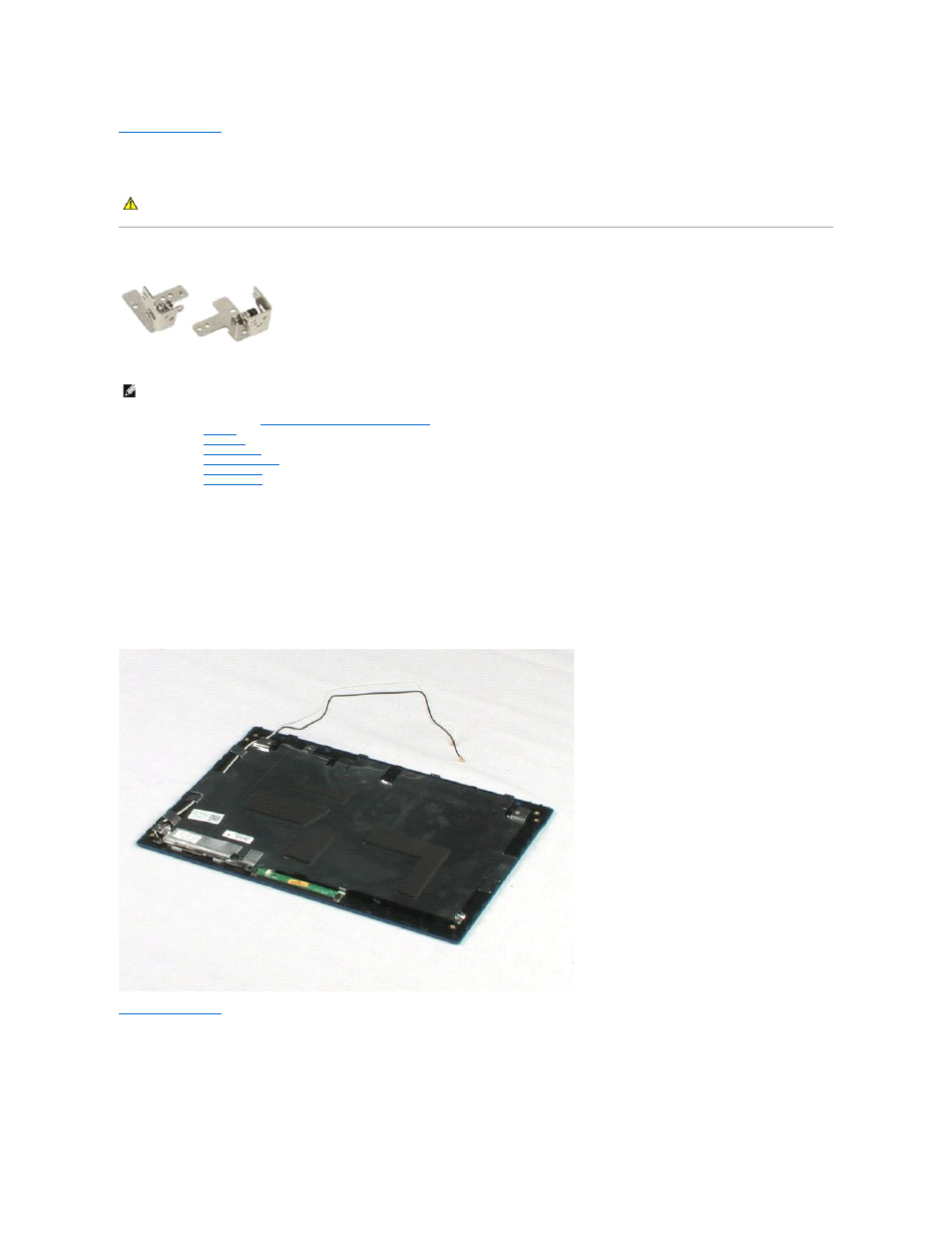

Display Hinges
Dell™ Latitude™ 2100 Service Manual
Removing the Display Hinges
1.
Follow the procedures in
Before Working Inside Your Computer
.
2.
Remove the
battery
from the computer.
3.
Remove the
keyboard
from the computer.
4.
Remove the
access panel
from the computer.
5.
Remove the
display assembly
from the computer.
6.
Remove the
display bezel
from the display assembly.
7.
Remove the
display panel
from the display assembly.
8.
Remove the screw that secures the display hinge to the display assembly.
9.
Lift and remove the display hinge from the display assembly.
10.
Repeat the previous procedure to remove the second hinge.
Back to Contents Page
WARNING:
Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTE:
You may need to install Adobe Flash Player from Adobe.com in order to view the illustrations below.
