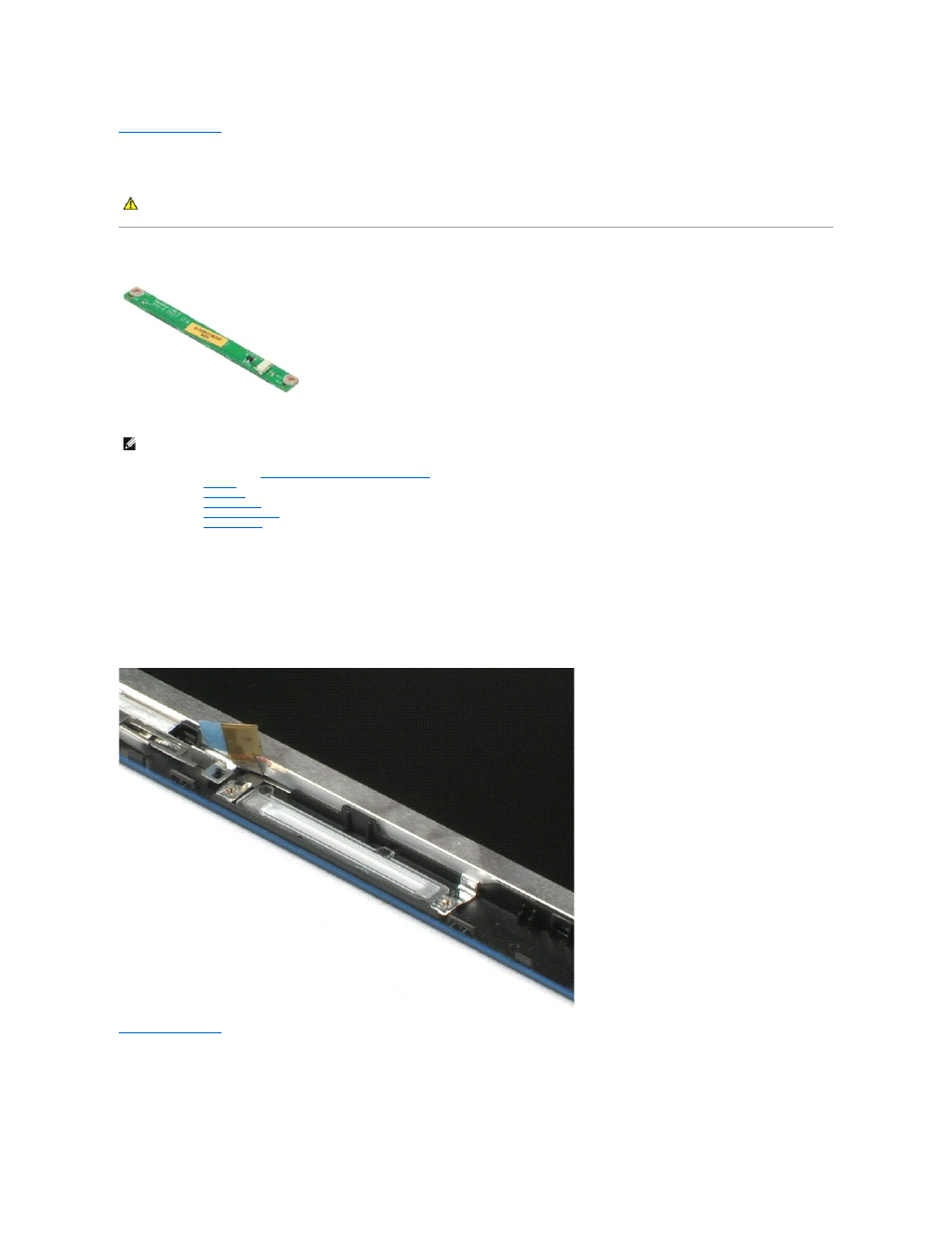

Display LED Board
Dell™ Latitude™ 2100 Service Manual
Removing the Display LED Board
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the battery from the computer.
3. Remove the keyboard from the computer.
4. Remove the access panel from the computer.
5. Remove the display assembly from the computer.
6. Remove the display bezel from the display assembly.
7. Disconnect the display LED board data cable from the display LED board.
8. Remove the two screws that secure the display LED board to the display assembly.
9. Remove the display LED board from the display assembly.
Back to Contents Page
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTE: You may need to install Adobe Flash Player from Adobe.com in order to view the illustrations below.
