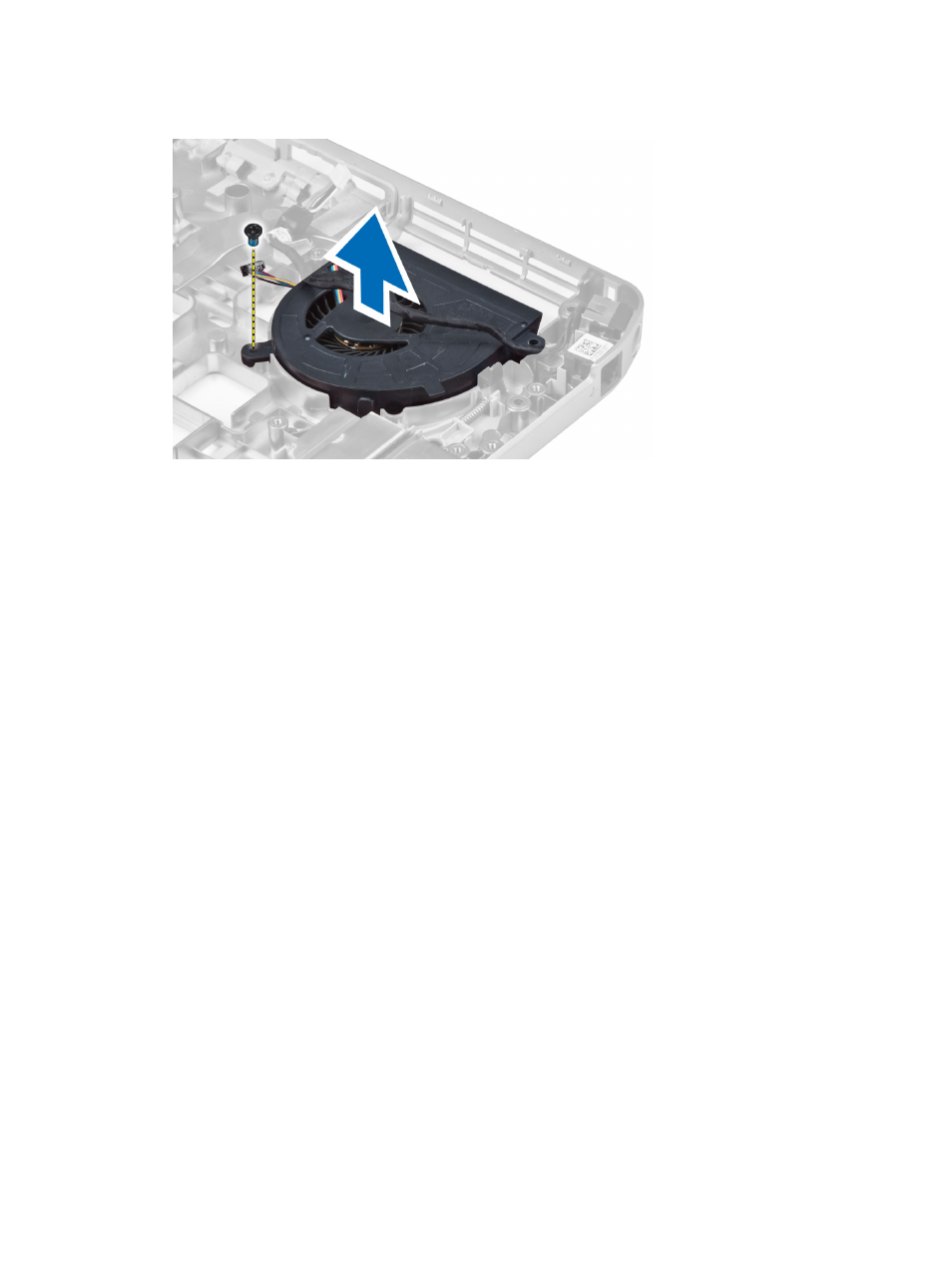

4. Remove the screw that secures the system fan and lift it to remove from the computer.
Installing the System Fan
1. Place the system fan in the computer.
2. Tighten the screws to secure the fan to the computer.
3. Install:
a) power connector
b) system board
c) network connector
d) modem card
e) left support frame
f) right support frame
g) display assembly
h) ExpressCard reader cage
i) palmrest
j) thermal module
k) right base panel
l) WLAN card
m) hard drive
n) optical drive
o) keyboard
p) keyboard trim
q) access panel
r) battery
s) SD memory card
4. Follow the procedures in After Working Inside Your Computer.
