Removing the Bluetooth Module
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove:
a) SD memory card
b) battery
c) access panel
d) keyboard trim
e) keyboard
f) optical drive
g) right base panel
h) palm rest

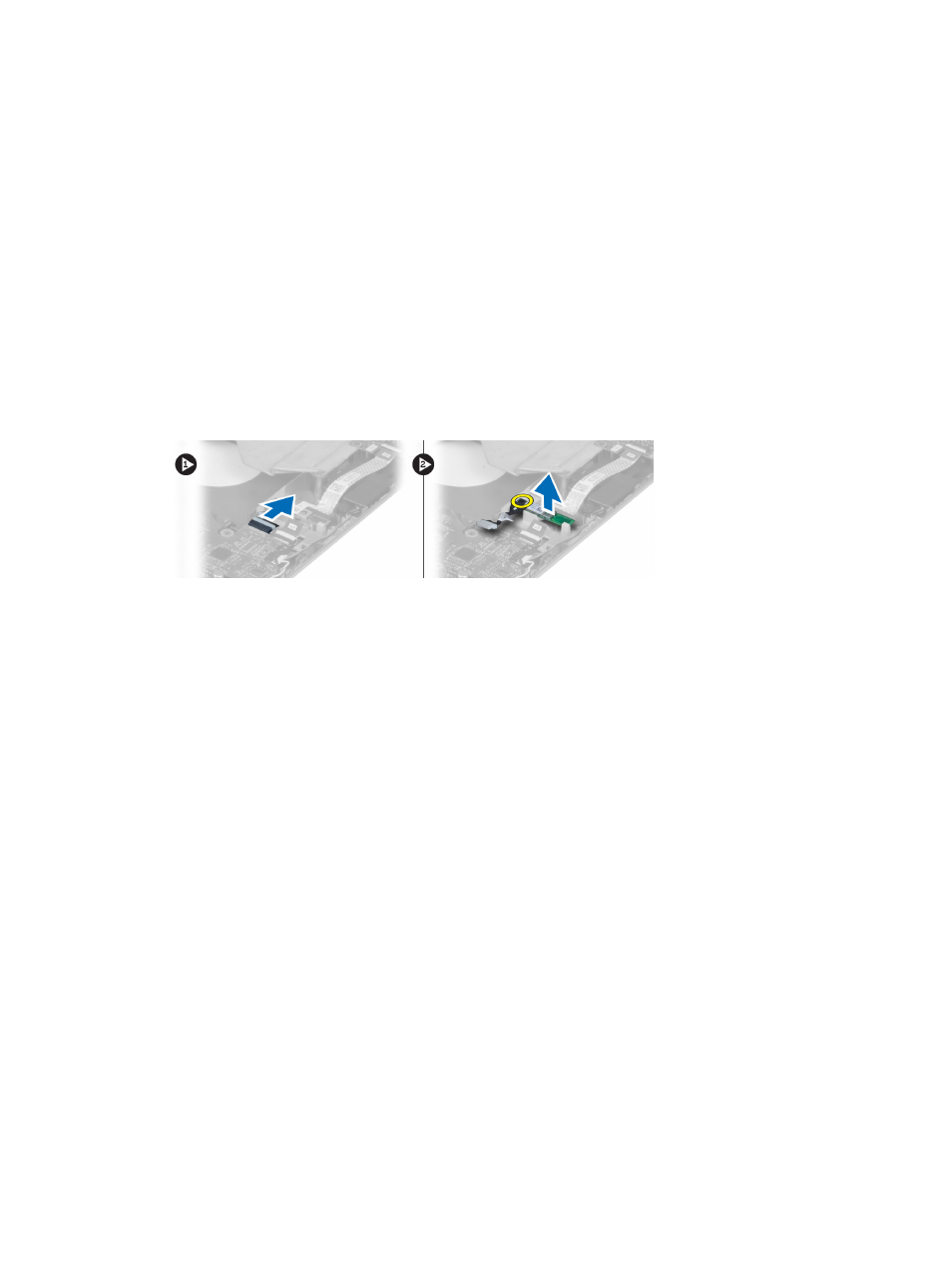

3. Disconnect the Bluetooth cable from the system board and remove the screw that secures the
Bluetooth module in place.
4. Remove the Bluetooth module from the computer.
5. Disconnect the Bluetooth cable from the Bluetooth module.
Installing the Bluetooth module
1. Connect the Bluetooth cable to the Bluetooth module.
2. Place the Bluetooth module into its compartment on the computer.
3. Install the screw that secures the Bluetooth module.
4. Connect the Bluetooth cable to the system board.
5. Install :
a) palm rest
b) right base panel
c) optical drive
d) keyboard
e) keyboard trim
f) access panel
g) battery
h) SD memory card
6. Follow the procedures in After Working Inside Your Computer.
