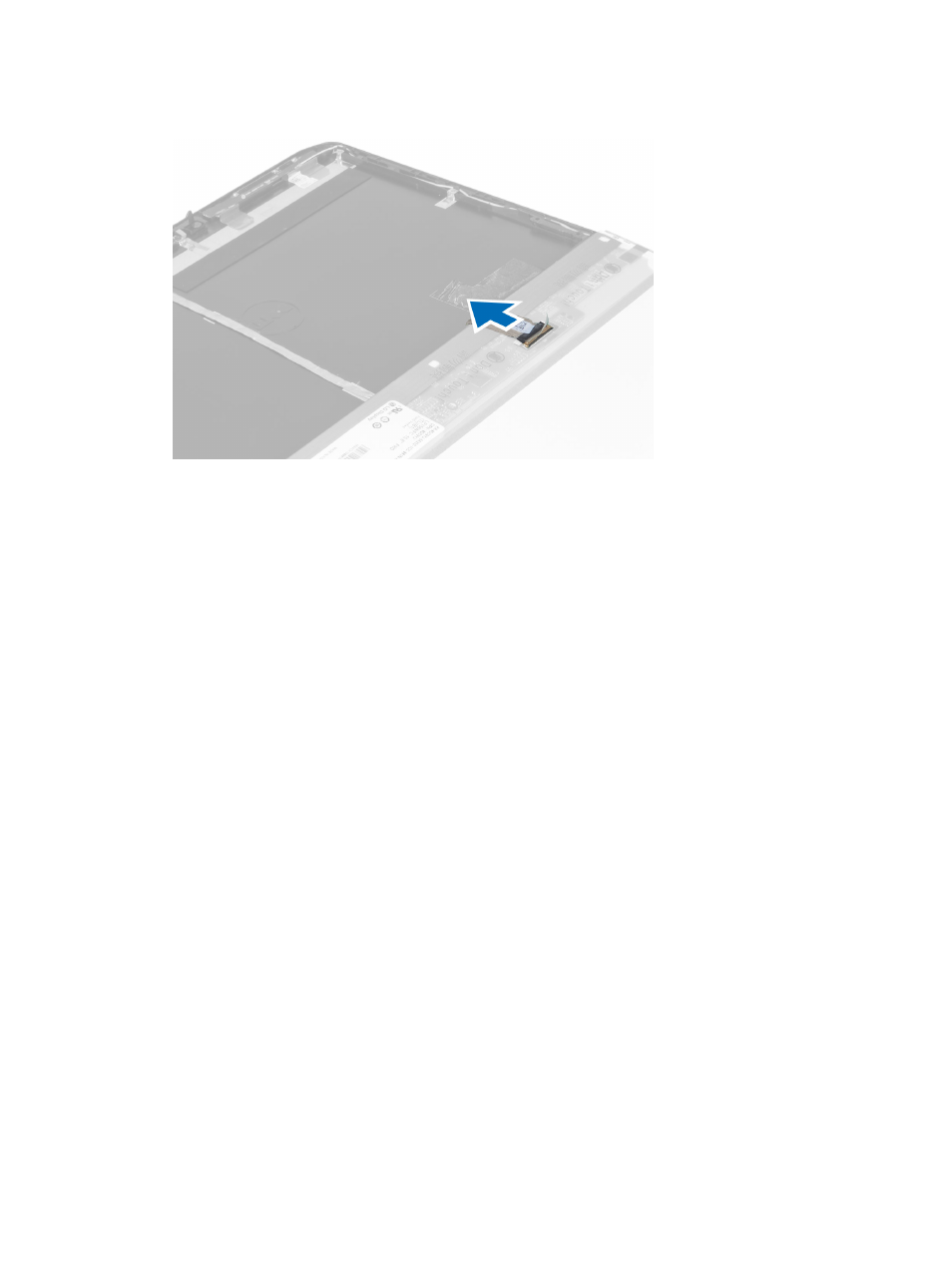

6. Remove the display panel from the display assembly.

Installing the Display Panel

1.

Install the screws that secure the display brackets to the display panel.

2. Attach the display panel to the display assembly.
3. Align the display panel in its original position in the computer.
4. Connect the low-voltage differential signaling (LVDS) cable to the display panel and attach the tape.
5. Flip the display panel over and install the screws that secure the display panel.
6. Install:

a) display bezel
b) battery

7. Follow the procedures in After Working Inside Your Computer.

Removing the Keyboard Trim

1.

Follow the procedures in Before Working Inside Your Computer.

2. Remove the battery.
