Using the Advanced Port Replicator
HINT: If you receive a
BIOS upgrade floppy disk
with your APR, use the
disk to upgrade your
computer before you use
the APR.
The advanced port replicator (APR) integrates your computer into a
desktop environment. The APR includes a network adapter to connect your
computer to a network.
NOTICE: Do not attempt to lift the computer while it is connected to the
APR. Doing so will damage the docking connector.
Connecting External Devices to the APR
HINT: If the cable
connector from the
external device has
thumbscrews, be sure to
tighten them to ensure a
proper connection.

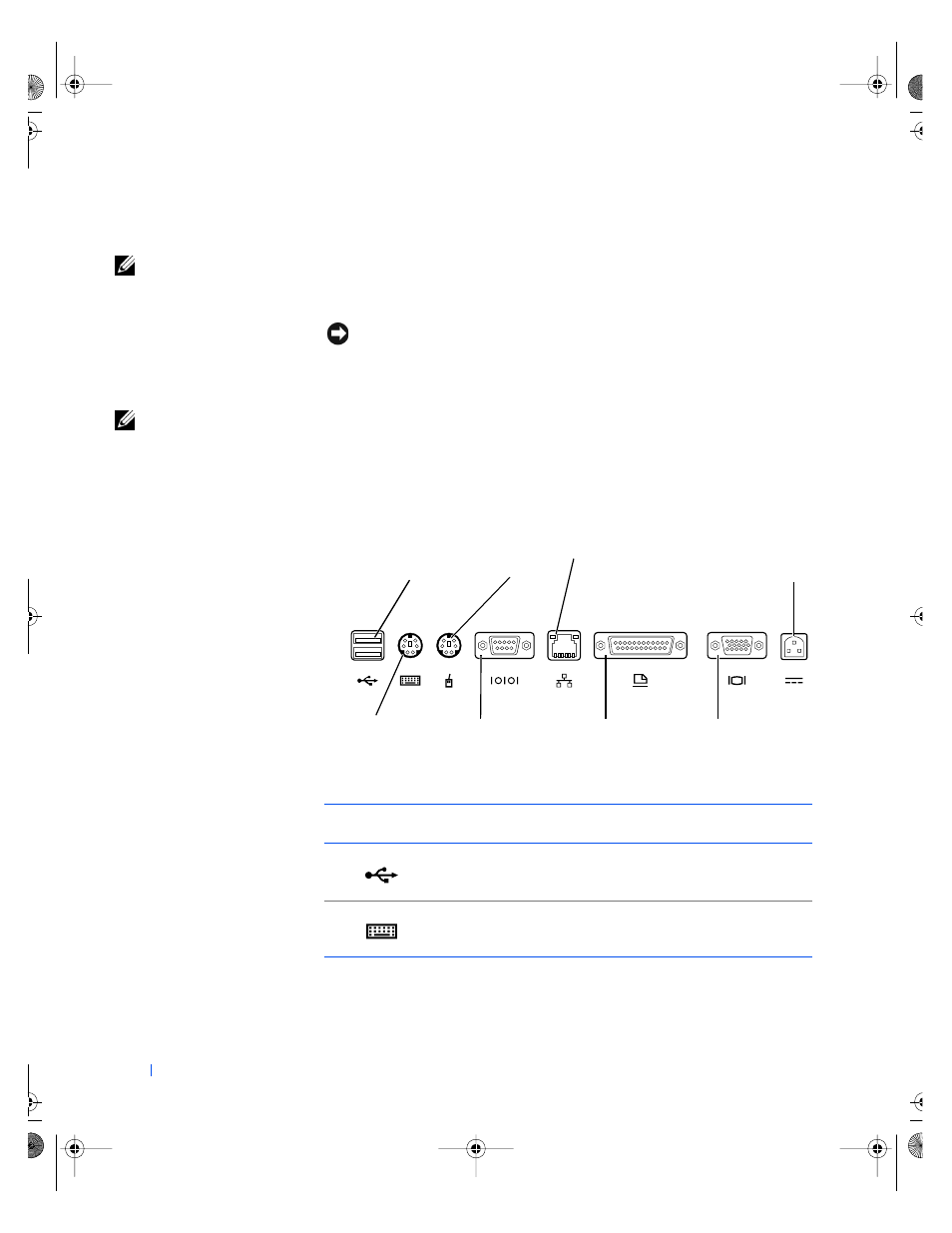

1 See the following illustrations to help you connect the devices to the
appropriate APR connector.
The I/O connectors on the back and side of the APR duplicate the
primary connectors on the back and side of your computer.
2 Connect the external devices to an electrical outlet, if applicable.
Connector Icon Connector Description
Connect one or two USB devices, such as a
USB mouse.
Connect a PS/2-style keyboard or numeric
keypad.
keyboard
connector serial
connector
USB
connectors (2)
parallel
connector
network
connector
video
connector
mouse
connector AC adapter
connector
