I/O Panel
Dell Precision™ Workstation 350 Service Manual
Removing the I/O Panel
1. Disconnect the control-panel cable from the control-panel connector on the I/O panel. Disconnect the I/O cable from the I/O panel.
Note the routing of the control-panel cable as you remove it from the computer so that you can replace it correctly.
2. Remove all cables that are connected to the I/O panel, such as the chassis intrusion switch and internal speaker cables.
3. From inside the chassis cover, remove the mounting screw that secures the I/O panel to the chassis.
4. Remove the I/O panel from the chassis.
Replacing the I/O Panel
To replace the I/O panel, follow the removal procedures in reverse order.
Back to Contents Page
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the System Information Guide.

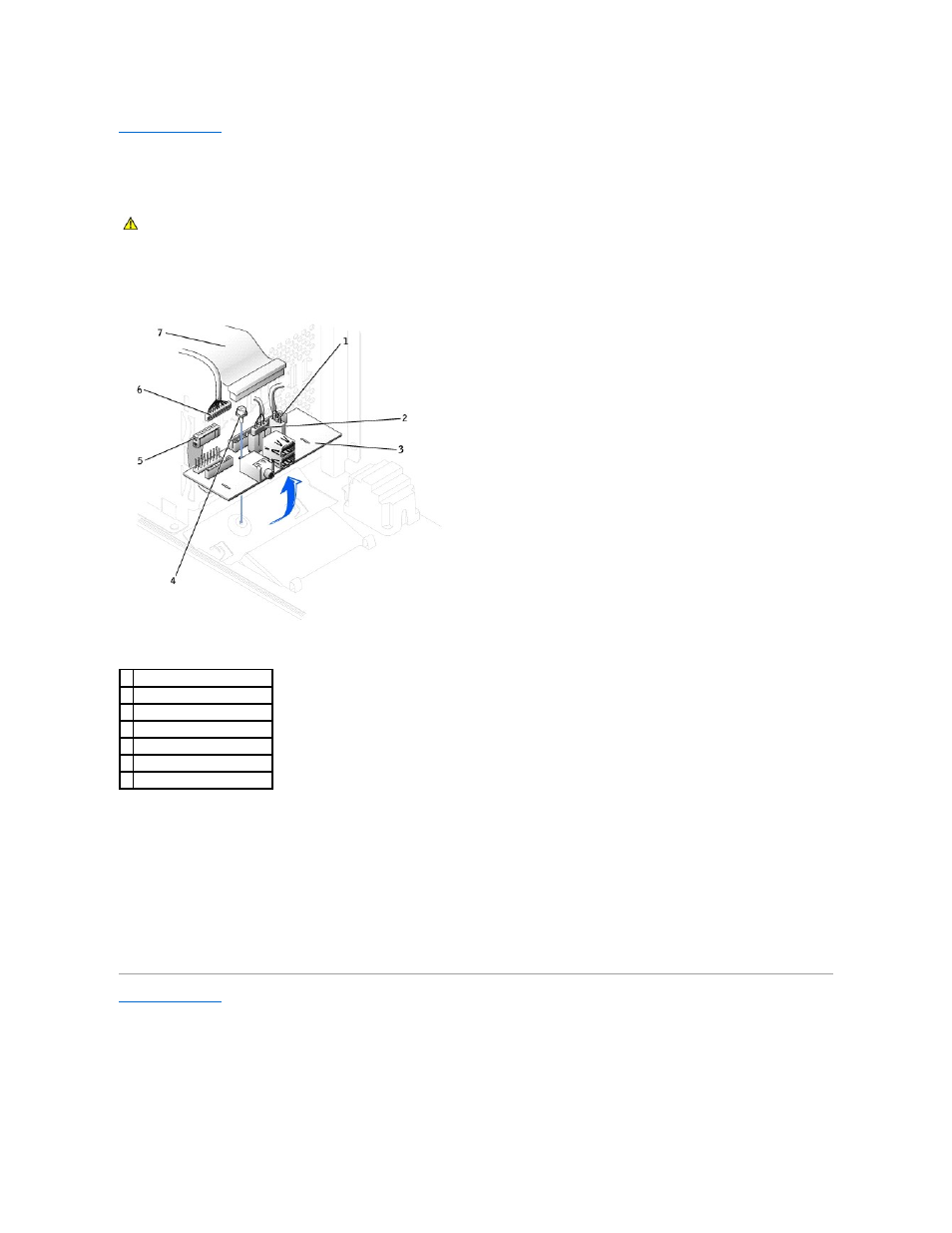

1 internal speaker cable
2 chassis intrusion switch cable
3 I/O panel
4 mounting screw
5 control-panel cable
6 front audio cable
7 I/O cable
