31

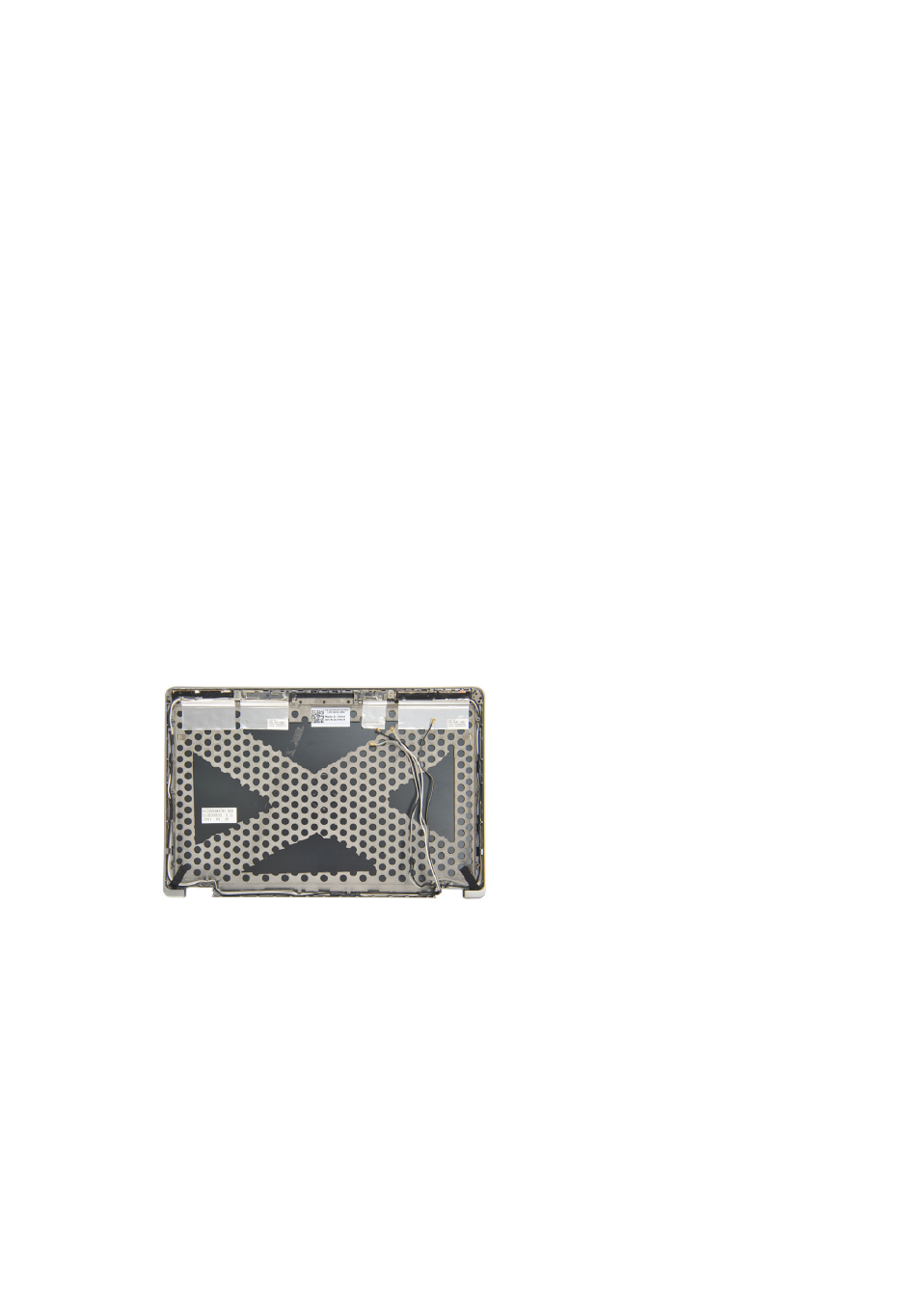

Display Top Cover

Removing The Display Top Cover

1. Follow the procedures in Before Working On Your Computer.
2. Remove the battery.
3. Remove the base cover.
4. Remove the palm rest.
5. Remove the keyboard.
6. Remove the display assembly.
7. Remove the display bezel.
8. Remove the display panel.
9. Remove the camera and microphone.
10. Remove the low voltage differential signalling (LVDS) cable.
11. Remove the display hinges.
12. Remove the display cover.

83
